M-4 Multi-Purpose Core Rigs

M-4 Multi-Purpose Core Rigs

6” Standard Bit Capacity, 3” (hand held)
Great Versatility in a Light Weight Rig

M-4 Multi-Purpose Core Rigs

More Views

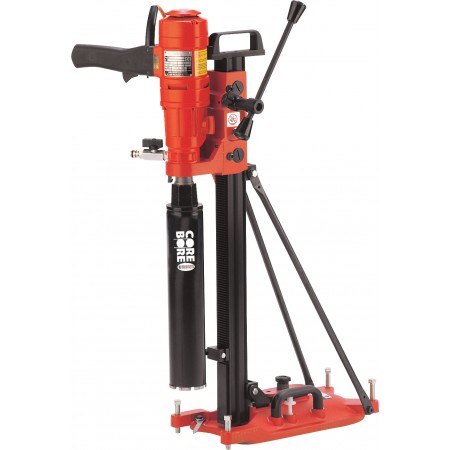

  • M-4 Multi-Purpose Core Rigs

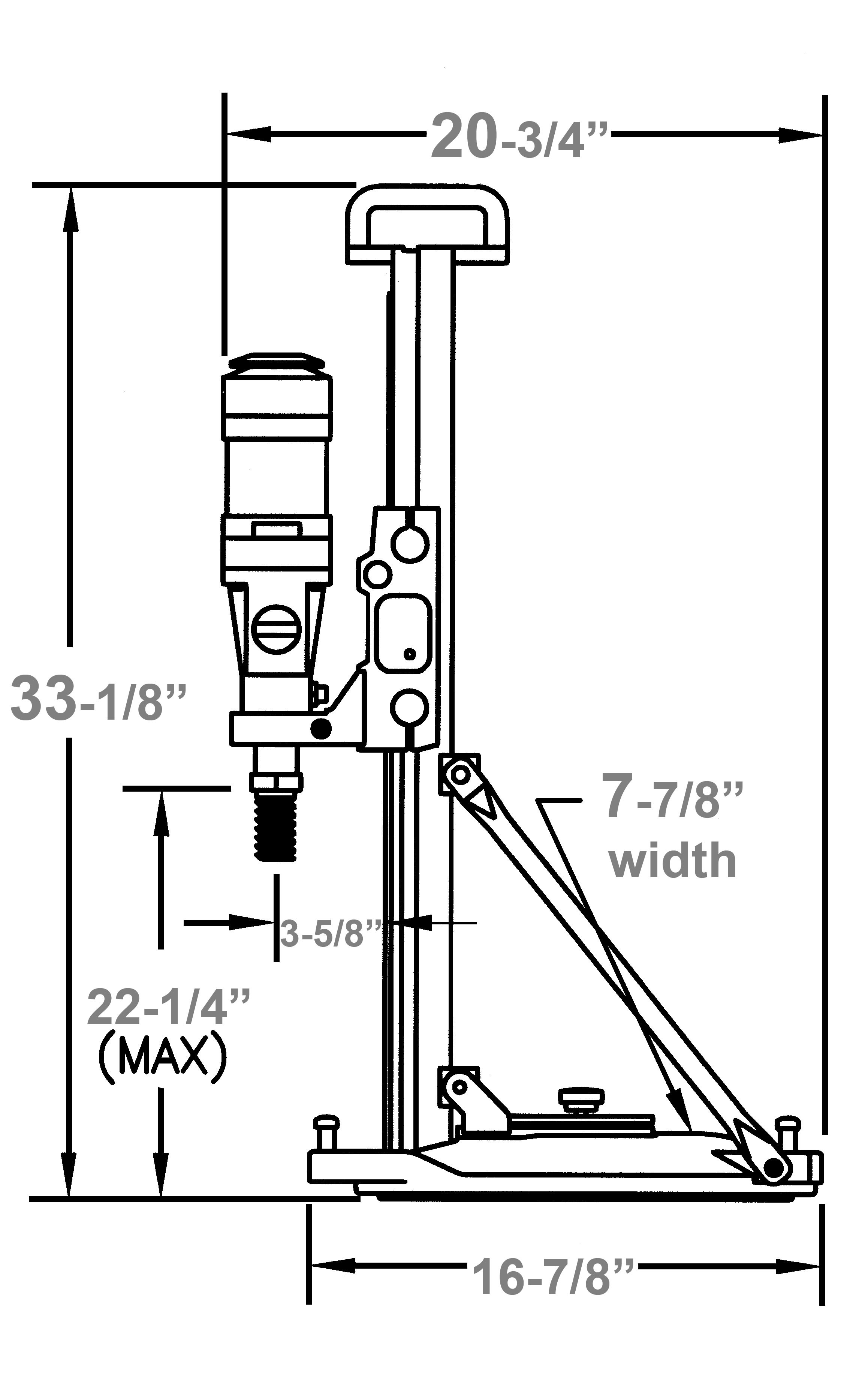

  • M-4 Anchor - Location to drill anchor hole = 9-3/4” (combo rig), 9-1/4” (anchor rig) Measured from the center of the motor spindle to the center of the anchor/vacuum slot on base (*Complete Anchor Rig does not have a vacuum slot on base)
  • Anchor Stand Only for Weka Motor (30" mast)
  • Combination Stand Only for Weka Motor (42" mast)

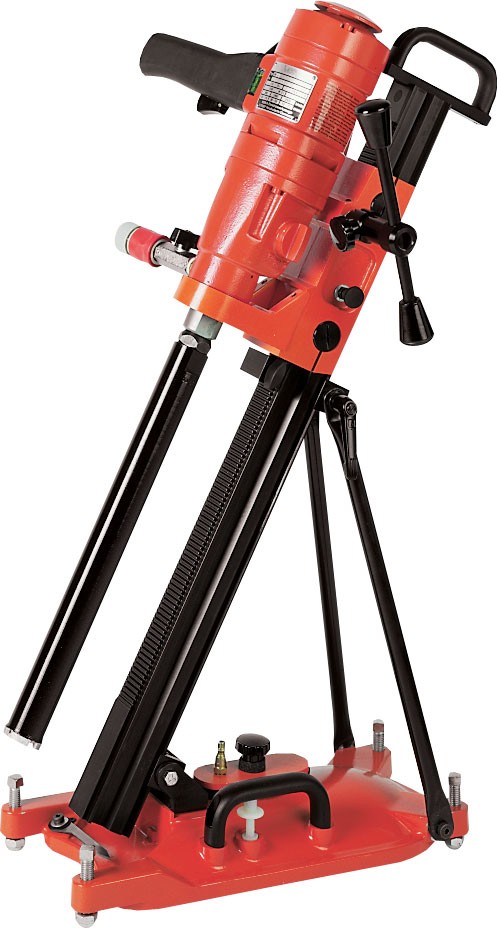

  • Combination Angle Stand Only for Weka Motor

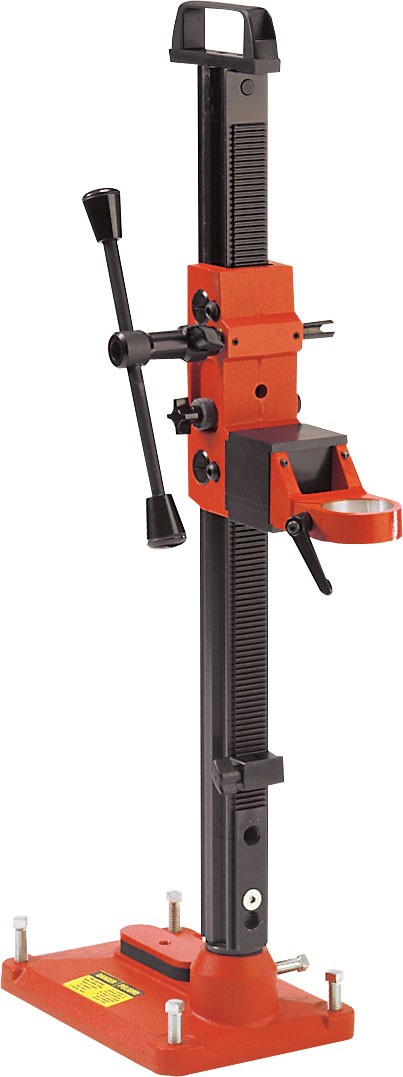

  • Swivel Combo Stand Only for Weka Motor (30" mast)
  • Vacuum seal retention keeps vacuum gasket held into the base longer for a durable seal

6” Standard Bit Capacity, 3” (hand held)

Features & Benefits:

  • Great for the general contractor (basic drilling) or plumber (hand-held drilling), electrical or mechanical contractor
  • Reversible slide handle (for use on left or right side)
  • High strength, hard anodized 1-5/8” x 2” aluminum column
  • Top carrying handle
  • Quick release motor mount
  • Carriage lock
  • Leveling bolts on all model bases
  • Hand-held option
  • 4 Leveling screws on base
  • Light weight and portable
  • Combo bases have angle braces for drilling up to 45o
  • 4 adjustable slide bearings provide superior carriage rigidity
  • Quick change over from vacuum to anchor base



Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
DK12 14 amp, 115 volt Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240001 00020
DK13 14 amp, 115 volt Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240044 51033
DK16 19 amp, 110 volt Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240054 98393
4097-20 20 amp, 115 volt Milwaukee 500/1000 Complete rig with add-on vacuum base and vacuum pump 4240002 01677
4004 20 amp, 115 volt Milwaukee 300/600 Complete rig with add-on vacuum base and vacuum pump 4240004 46815
4096 20 amp, 115 volt Milwaukee 450/900 Complete rig with add-on vacuum base and vacuum pump 4240005 01678
4005 20 amp, 115 volt Milwaukee 600/1200 Complete rig with add-on vacuum base and vacuum pump 4240006 01679
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Complete rig with add-on vacuum base and vacuum pump 4240009 60114
DK12 14 amp, 115 volt Weka 580/1400/2900 Complete rig without vacuum pump 4240046 66489
DK16 19 amp, 110 volt Weka 580/1400/2900 Complete rig without vacuum pump 4240057 08871
4097-20 20 amp, 115 volt Milwaukee 500/1000 Complete rig without vacuum pump 4240048 68601
4004 20 amp, 115 volt Milwaukee 300/600 Complete rig without vacuum pump 4240050 89951
4096 20 amp, 115 volt Milwaukee 450/900 Complete rig without vacuum pump 4240051 72631
4005 20 amp, 115 volt Milwaukee 600/1200 Complete rig without vacuum pump 4240052 76402
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Complete rig without vacuum pump 4240053 10169
DK12 14 amp, 115 volt Weka 580/1400/2900 Anchor rig 4240010 46871
DK13 14 amp, 115 volt Weka 580/1400/2900 Anchor rig 4240045 61221
DK16 19 amp, 110 volt Weka 580/1400/2900 Anchor rig 4240055 98683
4097-20 20 amp, 115 volt Milwaukee 500/1000 Anchor rig 4240011 48859
4004 20 amp, 115 volt Milwaukee 300/600 Anchor rig 4240013 69636
4096 20 amp, 115 volt Milwaukee 450/900 Anchor rig 4240014 52505
4005 20 amp, 115 volt Milwaukee 600/1200 Anchor rig 4240015 58320
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Anchor rig 4240016 87938
DK12 14 amp, 115 volt Weka 580/1400/2900 Swivel rig 4240030 46983
DK16 19 amp, 110 volt Weka 580/1400/2900 Swivel rig 4240056 98684
4097-20 20 amp, 115 volt Milwaukee 500/1000 Swivel rig 4240031 80917
4004 20 amp, 115 volt Milwaukee 300/600 Swivel rig 4240033 10170
4096 20 amp, 115 volt Milwaukee 450/900 Swivel rig 4240034 68389
4005 20 amp, 115 volt Milwaukee 600/1200 Swivel rig 4240035 93513
DK12 7 Amp Weka Dk12 (230V) Weka 580/1400/2900 Swivel rig 4240036 76985
DK13 14 amp, 115 volt Weka 580/1400/2900 Complete rig without vacuum pump 4240047 66975
