M1AA Portable Core Rig

M1AA Portable Core Rig

Convenience and Durability in a Light Weight Core Rig


Electric Powered

All-purpose vacuum base add-on option with vacuum pump allows you to use the M1AA anchor rig as a vacuum rig

More Views

  • Built-in LED Light Amp Meter
  • Bit not included
  • Water Trap Ring (Included with rig) Allows basic water containment
  • All-purpose vacuum base add-on option with vacuum pump allows you to use the M1AA anchor rig as a vacuum rig
  • Location to drill anchor hole = 9-1/2” measured from the center of the motor spindle to the center of the anchor/vacuum slot on base

6” Bit Capacity

Features & Benefits:

  • Weighs only 35 lbs.
  • Single speed-800 RPM
  • Spring loaded slide handle for easy coring
  • Convenient carrying handle on carriage
  • Easy to use for standard hole drilling
  • Light weight and portable
  • Uses standard power outlets
  • Small compact unit for precise coring
  • No separate amp meter box
  • Trap ring keeps water contained
  • Lower cost alternative to larger rigs



Motor/Engine Power Rig Type Part Number Catalog Number
15 amp, 110 volt Anchor rig 4220050 85986
12 amp, 110 volt Anchor rig 4220049 24024

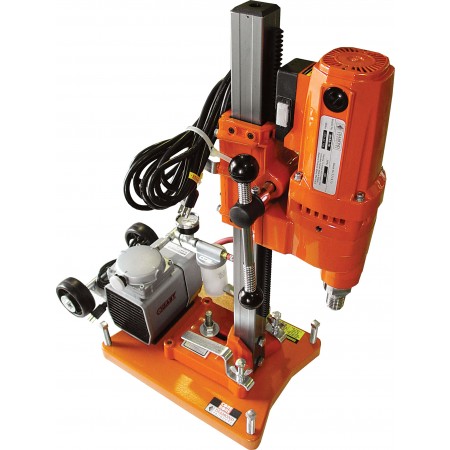

15 amp, 110 volt Complete rig with add-on vacuum base and vacuum pump 4220058 87078
12 amp, 110 volt Complete rig with add-on vacuum base and vacuum pump 4220048 42687
