CC1000 Small Joint Cutting Saw

CC1000 Small Joint Cutting Saw

The Ultra Lightweight Saw That Cuts Decorative and Joint Cuts in Concrete

CC1000 Small Joint Cutting Saw

More Views

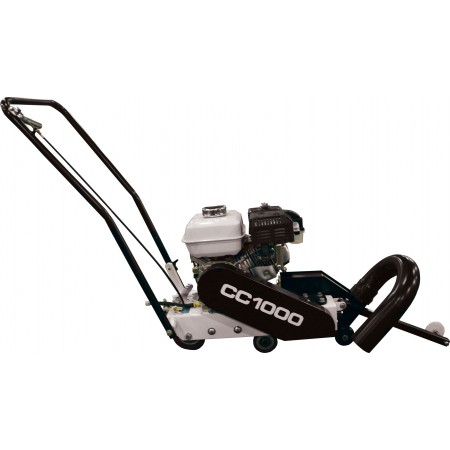

  • CC1000 Small Joint Cutting Saw
  • CC1000 Small Joint Cutting Saw drawing

 8" Blade Capacity / Gasoline / Electric

Features & Benefits:

  • Power transference to blade drive via 2 molded notch 3VX premium belts for better cutting performance and long belt life
  • Easy to maneuver push drive
  • Cyclone air cleaner for increased engine longevity
  • Center cut design making it easier to keep the cut straight
  • Dust diverter keeps the cut line clean
  • Upcut design for a cleaner cut
  • Adjustable blade alignment
  • 1/8” steel frame
  • 1” or 5/8” arbor with grease bearings

Specifications:

Maximum depth of cut with 8” blade: 2-1/4”
Blade shaft RPM: 3,800 3,800
Blade shaft diameter: 1” 1”
Arbor Size: 1” or 5/8” option 1” or 5/8” option
Front Wheels: 3” x 2” x 3/4” 3” x 2” x 3/4”
Rear Wheels: 5” x 2” x 3/4” 5” x 2” x 3/4”



Power Source Engine/Motor Make Part Number Catalog Number
Electric Baldor 5800552 47104
Electric Baldor - 5/8" shaft 5800716 63217
Gas Honda® GX160 5800551 46851
Gas Honda GX160-5/8" shaft 5800620 82084

* Required Fields

Additional Information

Blade Capacity 8"
