CC1200XL SMALL WALK BEHIND SAW

Great for the General Contractor!


14" - 18" Blade Capacity

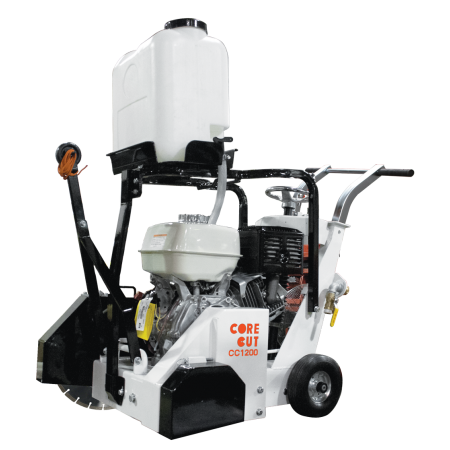

Shown with optional water tank.  Blade not included.

CC1200XL SMALL WALK BEHIND SAW

More Views

14” & 18” Blade Capacity

Features & Benefits:

  • Heavy duty design, but light weight enough for two people to lift and carry
  • Cyclone air filter (Honda® models)
  • Easy to read built-in depth indicator
  • Slip-on blade guard
  • Heavy duty handles do not rattle like competitor handles
  • Left or right hand sawing
  • Single ribbed belt
  • Water tank and lifting bale (tank optional-for dust suppression)

Specifications:

Maximum depth of cut with 14” blade:  4-5/8”
Maximum depth of cut with 18” blade:   6-5/8”
Blade shaft RPM:  2,600
Blade shaft diameter:  1-1/4”
Arbor Size:  1” with single drive pin
Blade mounting:  Right or left
Blade raise/lower:  Precision screw feed
Handle bars:  Adjustable
Depth indicator:  Standard
    ◊ Briggs 2100 Series models include a Diamond Products 3-year extended warranty. Horsepower and Torque as rated by the engine manufacturer.



Blade Capacity Engine/Motor Model Motor/Engine Power Engine/Motor Make Power Source Part Number Catalog Number
14” GX270 8.5 HP, 14.1 Torque (lbs.-ft.) Honda® Gas 5801092 32360
14" GX390 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5801093 32363
14” 2100 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801094 32365
18" GX270 8.5 HP, 14.1 Torque (lbs.-ft.) Honda® Gas 5801095 32424
18" LF177F 9 HP Lifan® Gas 5801096 32438
18" GX390 11.7 HP, 19.5 torque (lbs.-ft.) Honda® Gas 5801097 32453
18" 2100 420cc, 21 torque (lbs.-ft.) Briggs® ◊ Gas 5801098 32454
18" LF190F 15 HP Lifan® Gas 5801099 32482
