CC1500E MODULAR SAW

20” Blade Capacity / Electric

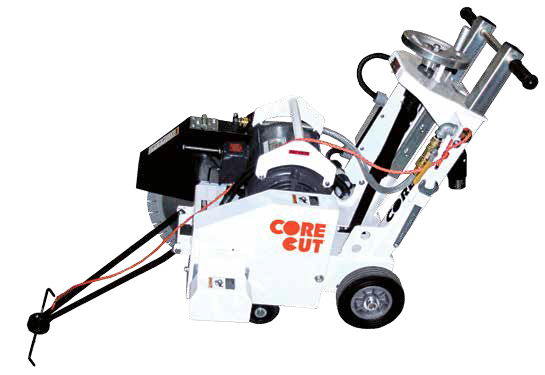

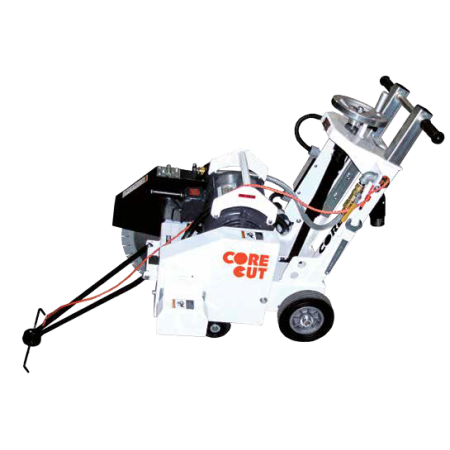

CC1500E MODULAR SAW

More Views

Features & Benefits:

  • Electric powered for areas with limited access and where exhaust fumes are not allowed
  • Easy to maneuver push drive
  • Motor can be removed in limited access areas to allow for a single person operation
  • Lightweight aluminum frame
  • Screw feed raise and lower
  • Heavy duty handle design

Specifications:

Maximum depth of cut with 14” blade: 4-5/8”
Maximum depth of cut with 18” blade: 6-1/2”
Maximum depth of cut with 20” blade: 7-1/2”
Blade shaft RPM: 2,000
Blade shaft diameter: 1-1/4”
Arbor size: 1” with drive pin
Blade Raise/Lower: Precision screw feed
Handle Bars: Adjustable



Blade Capacity Motor/Engine Power Engine/Motor Make Power Source Part Number Catalog Number
20" 7.5 HP-3PH, 460V Baldor® Electric 5801500 19131
