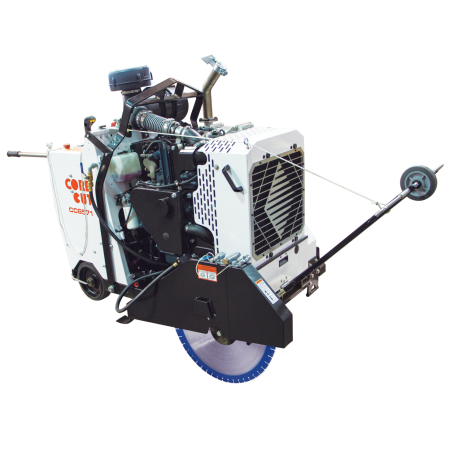

CC6571D DIESEL LIQUID COOLED WALK BEHIND SAW

Cool Running, Fuel Efficient and Reliable 71 HP Kubota® Diesel


14”-42” Blade Capacity


Diesel Powered





Export List As PDF

CC6571D

More Views

  • CC6571D

Features & Benefits:

  • Tier 4 Final liquid-cooled engine allows for a smoother running, longer lasting saw with higher productivity
  • Easy to maneuver self propelled drive
  • Strongest frame on the market
  • Less rear weight for easy maneuvering and reduced operator fatigue
  • Oil bath blade shaft comes standard
  • One-hand sawing control and parking brake
  • Fits through a 36” wide door frame (when guard is removed)
  • Quick release blade flange
  • Blade shaft tachometer-where it’s needed-not at the engine, gives true blade speed

Specifications:

Blade shaft diameter: 2”
Arbor size: 1” with drive pin
Blade shaft drive: 10 belt
Blade mounting: Right or left
Blade raise & lower: Electro-hydraulic pump
Transmission: Eaton model 10
Drive speed: 0-200 feet/minute
Air filter: 4 stage
Fuel capacity: 9 gallons

CC6571D LIQUID COOLED WALK BEHIND SAW

    Includes Blade shaft tachometer, Hour meter, Frame lift, Telescoping front pointer, Parking brake, Cutting depth



Blade Capacity Motor/Engine Power Engine/Motor Make Power Source Speeds Part Number Catalog Number
36” 71 HP Kubota Diesel Single Speed 5801164 41741
26” 71 HP Kubota Diesel 3-Speed (14”/26”/36”) 5801172 43503
26” 71 HP Kubota Diesel Single Speed 5801162 43504
30” 71 HP Kubota Diesel Single Speed 5801163 54080
14” 71 HP Kubota Diesel Single Speed 5801160 55603
20” 71 HP Kubota Diesel Single Speed 5801161 55625
42” 71 HP Kubota Diesel Single Speed 5801165 55633
20” 71 HP Kubota Diesel 3-Speed (20”/30”/42”) 5801171 55695
30” 71 HP Kubota Diesel 3-Speed (20”/30”/42”) 5801173 55713
36” 71 HP Kubota Diesel 3-Speed (14”/26”/36”) 5801174 55728
42” 71 HP Kubota Diesel 3-Speed (20”/30”/42”) 5801175 55729
14” 71 HP Kubota Diesel 3-Speed (14”/26”/36”) 5801170 59044
