WSE1217 Wall Saw System - Wall Saw - Sawing - Products

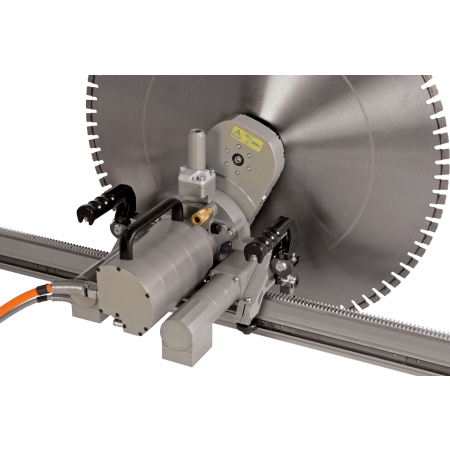

WSE1217 Wall Saw System

Powered by P2® Technology



  • Integrated permanent magnets

  • Reduced motor R.P.M. for reliability and low maintenance

  • High level of efficiency cutting performance


54” Blade Capacity


Electric Powered

WSE1217 Wall Saw System

More Views

Features & Benefits:

  • Significantly increased cutting performance thanks to innovative Tyrolit P2 Technology with permanent magnetic high cycle motor that runs at lower RPMs and allows for direct drive (no gear box)
  • Get higher productivity and reduced service costs due to the maintenance-friendly design
  • Optimize your cutting with the new automatic load sensing feed/travel mechanism and low RPM
  • Lightweight and versatile
  • The High Cycle Converter Can Also be Used to Power the WCE14 Wire Saw

WSE1217 Specifications:

BLADE

Maximum cutting depth: 22.5”
Maximum blade capacity: 54”
Maximum starter blade size: 32”
Blade mount: Quick-release flange

DESIGN

  • Infinitely adjustable swivel arm rotates 360°
  • 2 carrying handles with locking function

MOTOR

  • Water cooled high frequency motor without gearbox
  • Output at 32 amp 17 kW, 22.79 horsepower

POWER PACK/INVERTER INPUT

Voltage: 460 Volt
Frequency: 50Hz/60Hz
Output Frequency: 400 Hz

WEIGHT

Wall Saw WSE1217 including feed motors-without main drive blade motor: 56 lbs.
Electric main blade motor only: 36 lbs.
MINIMUM GENERATOR SIZE REQUIREMENT: 30kW
  • Electric Power Pack and Radio Remote Control
  • Part # 3401431, Cat # 42996 $35,255
  • (Included with WSE1217 complete system)
    **Not Included with package: Part# 340255, Part# 3402551**

* Required Fields

Additional Information

Blade Capacity 48”
