Accommodates Both Diamond Grinding Heads and Grinding Blocks for Large Grinding Jobs

10”/12” Head Capacity

 24" of Coverage!

Gasoline and Electric Models

Export List As PDF

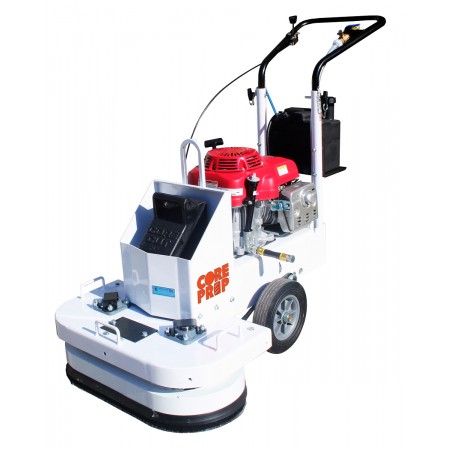

CPG200 Dual Head Floor Grinder

More Views

  • CPG200 Dual Head Floor Grinder
  • CPG200 Dimensions

Features & Benefits:

  • Remote throttle
  • 2” dust port opening
  • Multiple grease point
  • 1/4” thick steel box frame
  • Water hose connection
  • Adjustable operator handles
  • Multiple lifting handles and single lifting point
  • Dual head allows large 24” grinding area with two 12” grinding heads
  • 4 rear axle positions and swivel axle
  • Matches the height of the grinding head being used and allows for rapid change in weight distribution during grinding or transport
  • Can use diamond grinding head, carbide blocks or grinding stones

NOTE: Each Floor Grinder comes with one 65 lb weight ballast (*excludes Model # CPG202E1) Optional Second weight available 2501047 47017 --- --- $308

    * Must specify 115V or 230V when ordering Horsepower as rated by the engine manufacturer


Motor/Engine Power Engine/Motor Make Power Source Head Capacity Part Number Catalog Number
7.5 HP-3PH, 230V Baldor® Electric (2)10”/(2)12” 5801237A 42802
10.2 HP Honda® GXV390 Gas (2)10”/(2)12” 5801238 42874
2 HP-1PH, 115V or 230V Baldor® Electric (2)10”/(2)12” 5801235 42765
7.5 HP-1PH, 230V Baldor® Electric (2)10”/(2)12” 5801236 42793
7.5 HP-3PH, 460V Baldor® Electric (2)10”/(2)12” 5801237B 42827

* Required Fields

Additional Information

Blade Capacity No
