Weka Heavy Duty Electric Drill Motors
<< >>

Weka Drill Motors

Heavy Duty Mountable Drill Motor for Tough Applications.


Range from 16" to 26" Bit Capacity (without spacers).


Export List As PDF

Weka DK22 Electric Drill Motor

More Views

  • Weka DK52 Electric Drill Motor
  • Weka SR38 Electric Drill Motor
  • Weka SR75S Electric Drill Motor
  • Weka DK22 Electric Drill Motor
  • Weka DK42 Electric Drill Motor
  • Weka DK32 Electric Drill Motor

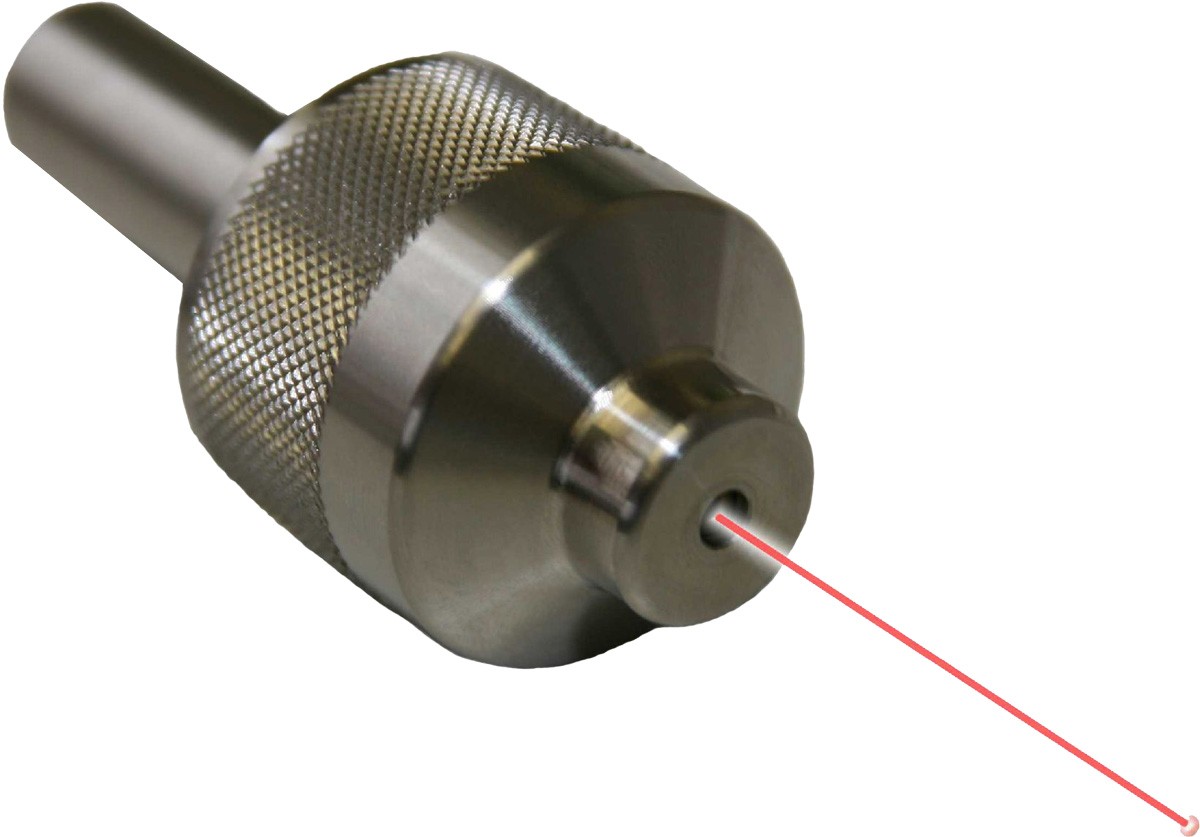

  • Weka Laser (for use with DK22, DK32, DK38)

Weka® DK22 / Electric

  • Heavy duty
  • Water connection
  • 1.250”-7 threaded spindle
  • Recommended for bits up 1”-12” Max 16”

Weka® DK32 Electric

  • Heavy duty
  • Water connection
  • 1.250”-7 threaded spindle
  • Recommended for bits 2”-16” Max 18”

Weka® DK38 Electric

  • 18 speeds
  • Water connection
  • 1.250”-7 threaded spindle
  • Recommended for bits 1-1/2”-16” Max 18”

Weka® DK42 Electric

  • Heavy duty
  • Water connection
  • 1.250”-7 threaded spindle
  • Recommended for bits 3”-18” Max 20”

Weka® DK52 Electric

  • Heavy duty
  • Water connection
  • 1.250”-7 threaded spindle
  • Recommended for bits 3”-20” Max 24”

Weka® SR75S Electric

  • 15-Speed-480V, 3 phase-7500 watt
  • Water cooled with water protection
  • No carbon brushes and rotating windings translate into low maintenance
  • 1.250”-7 threaded spindle
  • Recommended for bits 5”-24” Max 26”



Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Includes flange adapter for M-5 PRO only Part Number Catalog Number
SR38 16 amp, 230 volt Weka *See Weka SR38 18-Speed RPM Range Chart for more details No 4244124 68236
SR75S 14 amp, 480 volt, three-phase Weka *See Weka SR75S 15-Speed RPM Range Chart for more details No 4244117 16537
DK22 23 amp, 110 volt Weka 300/640/960 No 4244018 01741
DK22 11 Amp Weka DK22 (230V) Weka 300/640/960 No 4244016 47069
DK22L 23 amp, 110 volt Weka 250/520/780 No 4244105 54872
DK22S 23 amp, 110 volt Weka 420/880/1300 No 4244014 47828
DK22S 11 Amp Weka DK22S (230V) Weka 420/880/1300 No 4244029 47070
DK22F 23 amp, 110 volt Weka 300/640/960 No 4244118 40586
DK22F 11 Amp Weka DK22F (230V) Weka 300/640/960 No 4244119 53300
DK32F 30 amp, 110 volt Weka 230/480/720 No 4244120 56143
DK32F 15 Amp Weka DK32F (230V) Weka 230/480/720 No 4244121 44292
DK42 8.2 amp, 460 volt, three-phase Weka 190/410/610 No 4244022 01743
DK42 14.2 amp, 230 volt, three-phase Weka 190/410/610 No 4244023 01744
DK42S 8.2 amp, 460 volt, three-phase Weka 290/610/910 No 4244027 47641
DK42S 14.2 amp, 230 volt, three-phase Weka 290/610/910 No 4244024 01745
DK42AL 8.2 amp, 460 volt, three-phase Weka 130/280/430 No 4244066 94768
DK42AL 14.2 amp, 230 volt, three-phase Weka 130/280/430 No 4244056 91963
DK52 9 amp, 460 volt, three-phase Weka 150/290/440 No 4244060 47119
DK52 18 amp, 230 volt, three phase Weka 150/290/440 No 4244061 48023
DK32 30 amp, 110 volt Weka 230/480/720 No 4244059 46896
DK32 15 AMP (230V) Weka 230/480/720 No 4244058 47071
