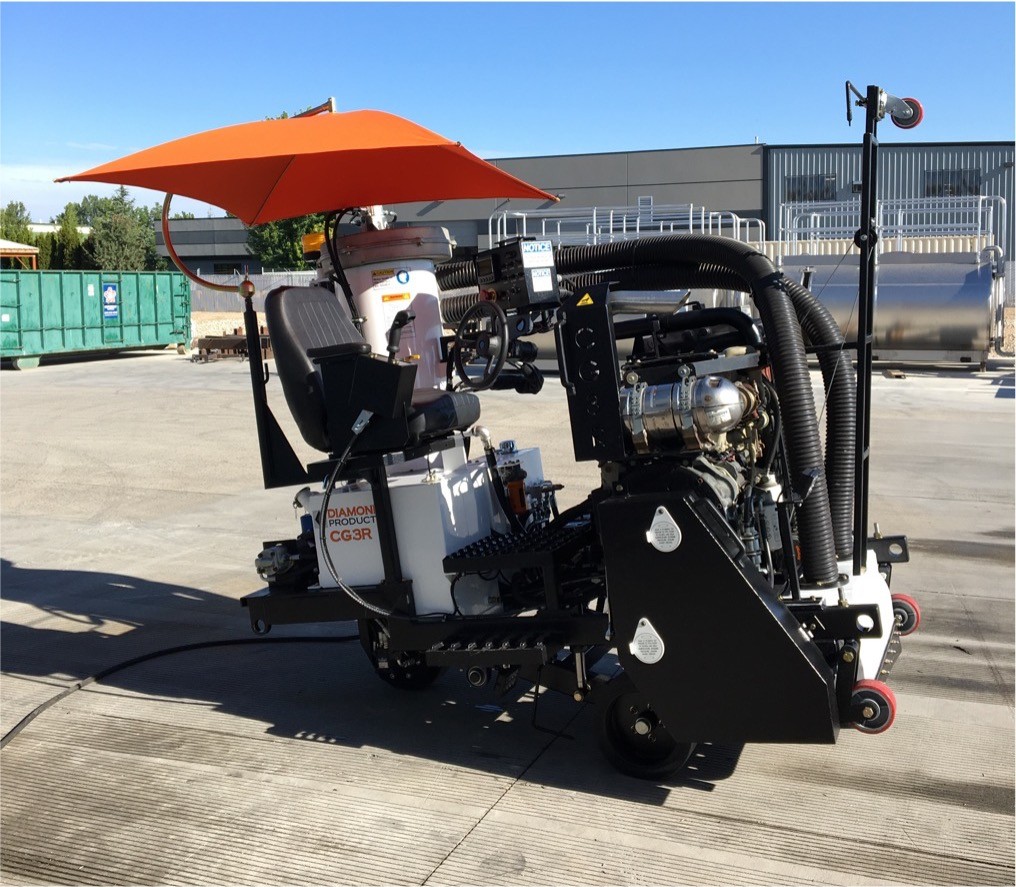

CG3R Pavement Groover

Ride-On Pavement Groover with Integral Slurry Vacuum and Discharge System



Export List As PDF

CG3R

More Views

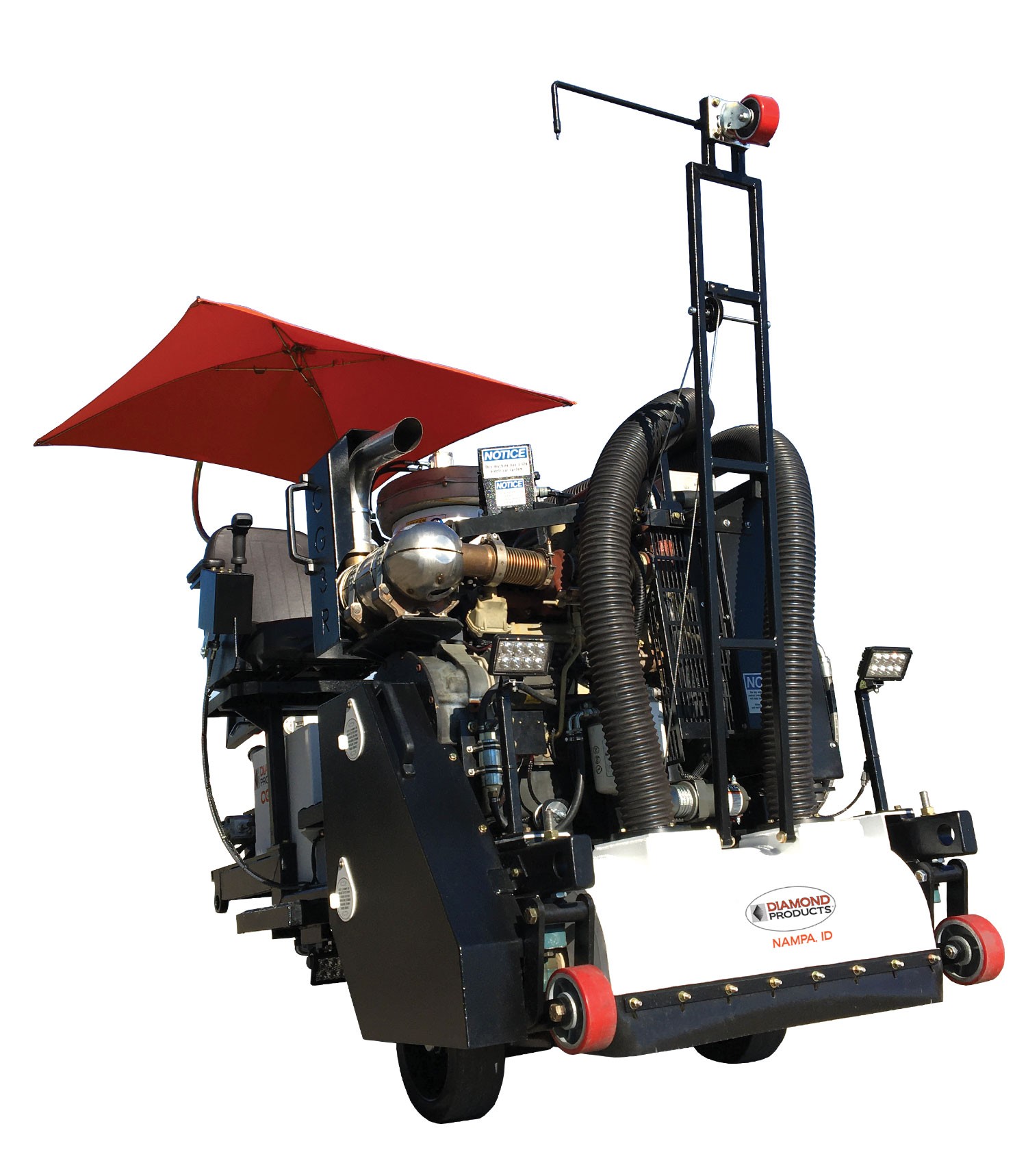

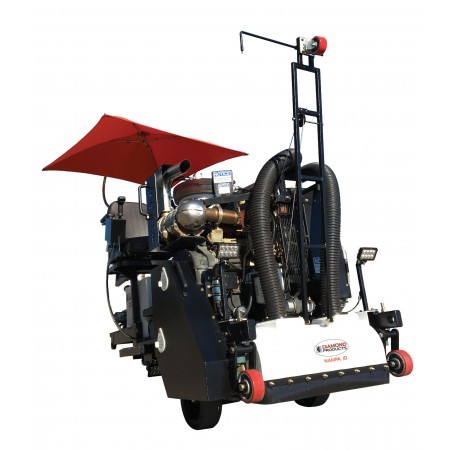

  • CG3R

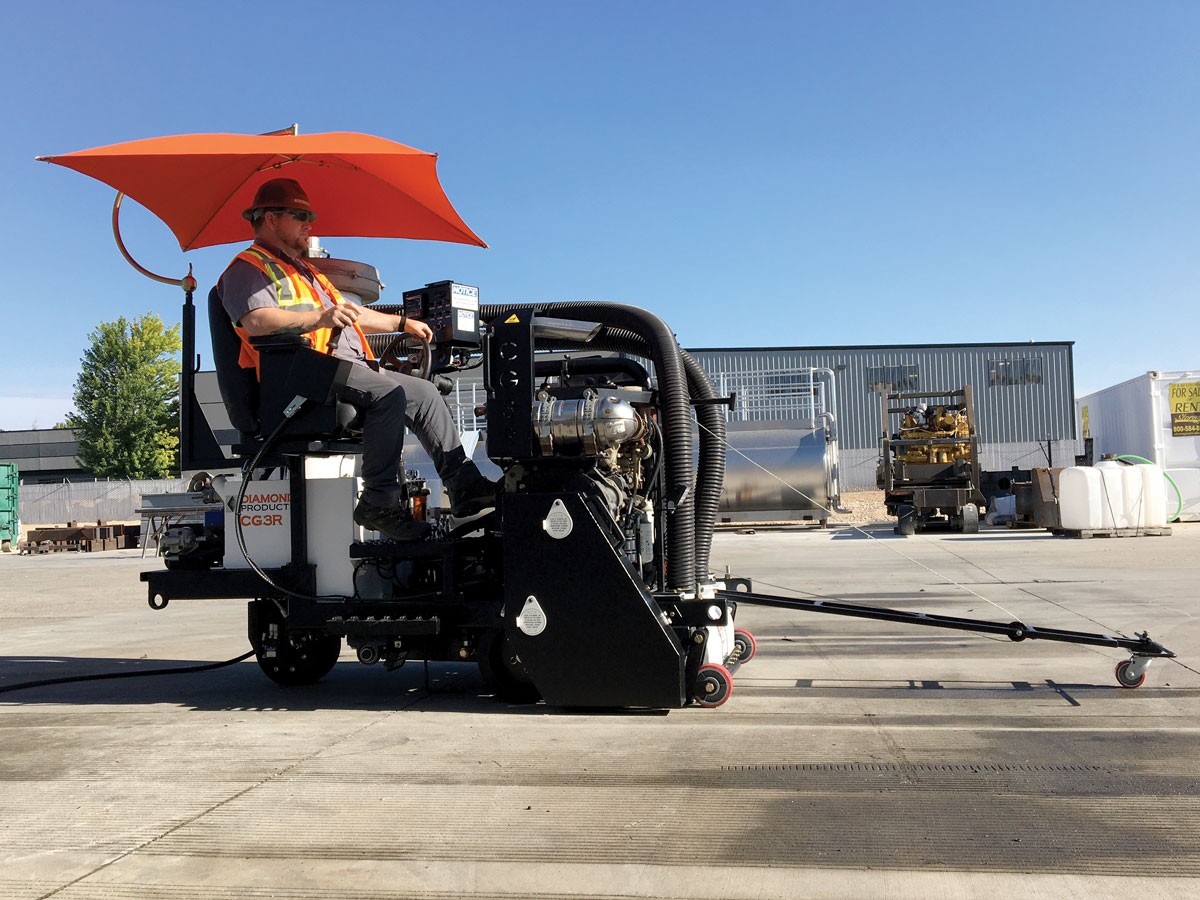

  • CG3R In Action

FEATURES:

• Riding unit for grooving long areas of pavement

• Compact and highly maneuverable

• Robust construction and heavy duty design

• On-board slurry vacuum & discharge system

• 30” (77.2cm) grooving width

• Uses standard 5” (12.7cm) bore 12” (30.48cm) diameter blades

• Joystick speed control with integral raise/lower switch

• Full compliment of work lights for night jobs

SPECIFICATIONS:

Engine Deutz Turbo Diesel 2.9L, 74.9HP Tier 4 Final, EU Stage V
Dimensions Length 87-5/8" (222.57cm), Width 54-1/8" (137.48cm), Height 87-7/8" (223.2cm)
Weight 3200 lbs. (1451.5Kg) Estimated
Fuel Capacity 25.85 Gallons (97.85 liters)
Blade Shaft 5" (12.7cm) Diameter with 4-draw Bolts
Blade Diameter 12" (30.48cm)
Cutting Width 30" (76.2cm)
Blade Shaft RPM 13000 Maximum
Blade Shaft Drive Belt Driven
Hydraulics Electric/Hydraulic Blade Raise/Lower
Ground Drive Joystick-controlled Belt Driven Closed Looped Hydrostatic Pump
Vacuum System Hydraulically-driven Fan and Self Priming Contrifugal Slurry Pump
Electrical 12 Volt
Speed Up to 250 Feet Per MInute Forward/Reverse
Machine Controls Power Steering, Joystick Ground Drive Control with Integral Head Raise/Lower Switch

Part Number: CG3R, Catalog # 99357
