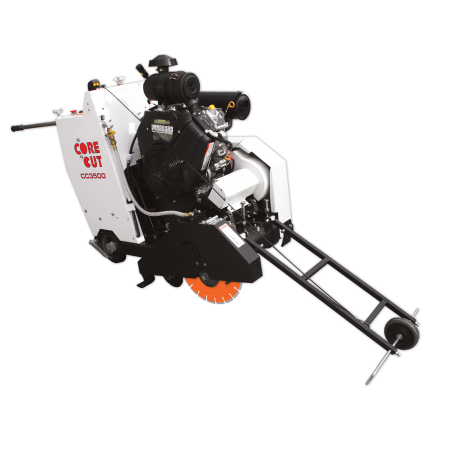

>> CC3500 WALK BEHIND SAW Ideal for Municipalities and Rental Stores. Jackshaft Design = Full Torque 14”-30” Blade Capacity More Views Product Description Features & Benefits: Great mid-size saw for service, utility work and rental Jack shaft allows full engine power Easy to maneuver self propelled drive Engine adjustment mechanism for belt tightening and maintenance Strongest frame on the market 30% more torque with new jack shaft design (on gas models) Fits through a 30” door frame Specifications: Maximum depth of cut with 14” blade: 4-3/8” Maximum depth of cut with 20” blade: 7-3/8” Maximum depth of cut with 26” blade: 10-3/8” Maximum depth of cut with 30” blade: 2-3/8” Blade shaft diameter: 1-3/4” Arbor size: 1” w/drive pin Blade shaft drive: 6 belt Blade mounting: Right or Left Blade raise & lower: Electro-hydraulic pump Transmission: Eaton Model 10 Drive speed: 0-200 feet/min Air filter: 4 stage Fuel capacity (gas models): 6 gallons INCLUDES: Telescoping front pointer, Cutting depth indicator, Quick disconnect blade flanges, Hour meter, Frame lift. Blade Capacity Motor/Engine Power Power Source Engine/Motor Make/Model Part Number Catalog Number 14" 30HP, 575V - 3PH Electric Leeson® 5800788B 46558 14" 37 HP (55.3 torque) Gas Kohler® Command CH1000 5801301 25315 20" 37 HP (55.3 torque) Gas Kohler® Command CH1000 5801302 25319 26” 37 HP (55.3 torque) Gas Kohler® Command CH1000 5801303 25320 30” 37 HP (55.3 torque) Gas Kohler® Command CH1000 5801304 25322 14" 35 HP Gas Briggs & Stratton® Vanguard 5801305 25324 20" 35 HP Gas Briggs & Stratton® Vanguard 5801306 25330 26” 35 HP Gas Briggs & Stratton® Vanguard 5801307 25331 30” 35 HP Gas Briggs & Stratton® Vanguard 5801308 25337 26” 30HP, 460V - 3PH Electric Leeson® 5800790A 50392 20" 30HP, 460V - 3PH Electric Leeson® 5800789A 50440 30” 30HP, 460V - 3PH Electric Leeson® 5800791A 50441 14" 20 HP, 230V-3PH Electric Baldor® 5800784A 50442 20" 20 HP, 230V-3PH Electric Baldor® 5800785A 50443 26” 20 HP, 230V-3PH Electric Baldor® 5800786A 50444 30” 20 HP, 230V-3PH Electric Baldor® 5800787A 50446 26” 20 HP, 460V-3PH Electric Baldor® 5800786B 51919 20" 20 HP, 460V-3PH Electric Baldor® 5800785B 57116 30” 20 HP, 460V-3PH Electric Baldor® 5800787B 68486 14" 20 HP, 460V-3PH Electric Baldor® 5800784B 03729a 14” 20 HP, 575V-3PH Electric Baldor® 5800784C 03730a 20" 20 HP, 575V-3PH Electric Baldor® 5800785C 03733 26” 20 HP, 575V-3PH Electric Baldor® 5800786C 03739a 30” 20 HP, 575V-3PH Electric Baldor® 5800787C 03743a 20" 30HP, 575V - 3PH Electric Leeson® 5800789B 46559 26” 30HP, 575V - 3PH Electric Leeson® 5800790B 76420 30” 30HP, 575V - 3PH Electric Leeson® 5800791B 62313 14” 30HP, 460V - 3PH Electric Leeson® 5800788A 50439 * Required Fields Attachments CC3500E Parts List Large Saw Operator's Manual CC3500J Parts List CC3500J Operator's Manual
