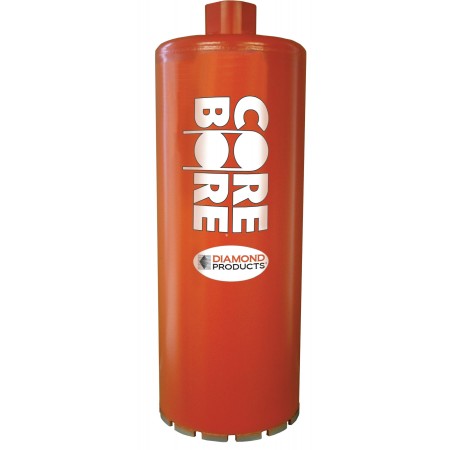

Heavy Duty Orange Wet Core Bore Bits

Specifications
HOL- General Purpose, Longer Life

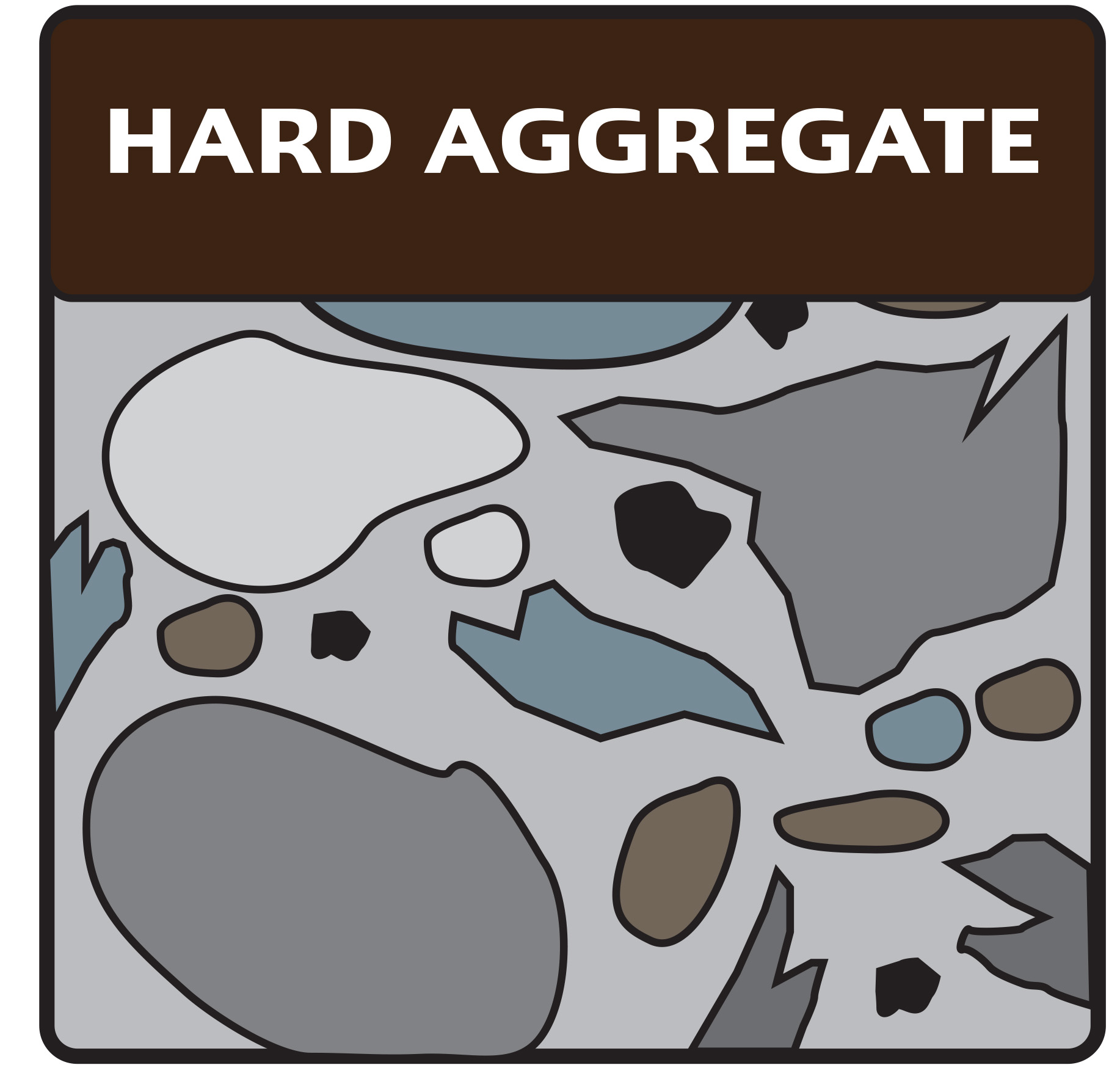

H38F-Hard aggregate with reinforcement




H42Z-Hard materials, river rock with reinforcement




H64L-Asphalt/Block




Heavy Duty Orange Wet Core Bore Bits

More Views

Excellent footage and drilling speed. Designed for all types of wet drilling in applications with light to moderate steel.
Very high quality diamond and longer coring life.

ORDERING INFORMATION All bits may be ordered with custom bonds Note: All diameters are nominal. Exact tolerances upon request.

Core Bit Lengths: 1/2” to 7/8” Diameter Core Bits Standard Core Length= 12”, 1” to 14” Diameter Core Bits Standard Core Length = 13” 16” Diameter Core bits Standard Core Length = 19”/18” Diameter Core Bits Standard Core Length = 22” 20” to 30” Diameter Core bits Standard Core Length = 23” Note: Any length available upon request.

Hub Sizes: 1/2” to 1-1/2” = 5/8”-11 threaded hub. 1-5/8” and up = 1-1/4”-7 threaded hub



Size Bond Specification Part Number Catalog Number
1 1/4 In. x 13 In. x 5/8 In. - 11 HOL BH1250 15509
1 1/2 In. x 13 In. x 5/8 In. - 11 HOL BH1500 15525
2 In. x 13 In. x 1-1/4 In. - 7 HOL BH2000 15479
34 In. x 36 In. x 1-1/4 In. - 7 HOL BH34000SH 28641
36 In. x 38 In. x 1-1/4 In. - 7 HOL BH36000SH 25778
38 In. x 40 In. x 1-1/4 In. - 7 HOL BH38000SH 28642
40 In. x 42 In. x 1-1/4 In. - 7 HOL BH40000SH 28643
42 In. x 44 In. x 1-1/4 In. - 7 HOL BH42000SH 28644
44 In. x 46 In. x 1-1/4 In. - 7 HOL BH44000SH 41642
48 In. x 50 In. x 1-1/4 In. - 7 HOL BH48000SH 28055
12 In. x 13 In. x 1-1/4 In. - 7 HOL 4853
14 In. x 16 In. x 1-1/4 In. - 7 HOL 4882
16 In. x 18 In. x 1-1/4 In. - 7 HOL 4903
18 In. x 20 In. x 1-1/4 In. - 7 HOL 4918
20 In. x 22 In. x 1-1/4 In. - 7 HOL 4947
24 In. x 26 In. x 1-1/4 In. - 7 HOL 4968
26 In. x 28 In. x 1-1/4 In. - 7 HOL BH26000 04986
28 In. x 30 In. x 1-1/4 In. - 7 HOL 4996
30 In. x 32 In. x 1-1/4 In. - 7 HOL 5023
32 In. x 34 In. x 1-1/4 In. - 7 HOL 5031
54 In. x 56 In. x 1-1/4 In. - 7 HOL BH54000SH 41915
56 In. x 58 In. x 1-1/4 In. - 7 HOL BH56000SH 35251
60 In. x 62 In. x 1-1/4 In. - 7 HOL BH60000SH 25046
2 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL 4
3 In. x 13 In. x 1-1/4 In. - 7 HOL 5
3 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL 6
4 In. x 13 In. x 1-1/4 In. - 7 HOL 7
4 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL 8
5 In. x 13 In. x 1-1/4 In. - 7 HOL 9
6 In. x 13 In. x 1-1/4 In. - 7 HOL 10
1 In. x 13 In. x 5/8 In. - 11 HOL 4812
10 In. x 13 In. x 1-1/4 In. - 7 HOL 4822
1 1/8 In. x 13 In. x 5/8 In. - 11 HOL 4837
1 3/8 In. x 13 In. x 5/8 In. - 11 HOL 4874
1 5/8 In. x 13 In. x 1-1/4 In. - 7 HOL 4907
1 3/4 In. x 13 In. x 1-1/4 In. - 7 HOL 4910
1 7/8 In. x 13 In. x 1-1/4 In. - 7 HOL 4920
2 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL 4959
2 3/4 In. x 13 In. x 1-1/4 In. - 7 HOL 4992
3 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL 5032
4 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL 5079
1/2 In. x 12 In. x 5/8 In. - 11 HOL 5099
5 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL 5117
5/8 In. x 12 In. x 5/8 In. - 11 HOL 5141
6 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL 5144
6 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL 5151
7 In. x 13 In. x 1-1/4 In. - 7 HOL 5163
3/4 In. x 12 In. x 5/8 In. - 11 HOL 5173
8 In. x 13 In. x 1-1/4 In. - 7 HOL 5183
7/8 In. x 12 In. x 5/8 In. - 11 HOL 5192
9 In. x 13 In. x 1-1/4 In. - 7 HOL 5199
1/2 In. x 12 In. x 5/8 In. - 11 H64L BH500 36273
5/8 In. x 12 In. x 5/8 In. - 11 H64L BH625 16875
3/4 In. x 12 In. x 5/8 In. - 11 H64L BH750 16877
7/8 In. x 12 In. x 5/8 In. - 11 H64L BH875 16886
1 1/8 In. x 13 In. x 5/8 In. - 11 H64L BH1125 27000
1 1/4 In. x 13 In. x 5/8 In. - 11 H64L BH1250 25596
1 3/8 In. x 13 In. x 5/8 In. - 11 H64L BH1375 36274
1 1/2 In. x 13 In. x 5/8 In. - 11 H64L BH1500 28619
1 5/8 In. x 13 In. x 1-1/4 In. - 7 H64L BH1625 26414
1 3/4 In. x 13 In. x 1-1/4 In. - 7 H64L BH1750 28621
1 7/8 In. x 13 In. x 1-1/4 In. - 7 H64L BH1875 20934
2 3/4 In. x 13 In. x 1-1/4 In. - 7 H64L BH2750 28623
3 1/4 In. x 13 In. x 1-1/4 In. - 7 H64L BH3250 28624
3 1/2 In. x 13 In. x 1-1/4 In. - 7 H64L BH3500 28625
5 1/2 In. x 13 In. x 1-1/4 In. - 7 H64L BH5500 28626
7 In. x 13 In. x 1-1/4 In. - 7 H64L BH7000 24977
9 In. x 13 In. x 1-1/4 In. - 7 H64L BH9000 28627
14 In. x 16 In. x 1-1/4 In. - 7 H64L BH14000 24889
16 In. x 18 In. x 1-1/4 In. - 7 H64L BH16000 25130
18 In. x 20 In. x 1-1/4 In. - 7 H64L BH18000 28628
1 In. x 13 In. x 5/8 In. - 11 H38F 4809
2 1/2 In. x 13 In. x 1-1/4 In. - 7 H38F BH2500 37094
5/8 In. x 12 In. x 5/8 In. - 11 H38F BH625 39237
1/2 In. x 12 In. x 5/8 In. - 11 H38F BH500 45547
3/4 In. x 12 In. x 5/8 In. - 11 H38F BH750 45548
7/8 In. x 12 In. x 5/8 In. - 11 H38F BH875 45549
1 1/8 In. x 13 In. x 5/8 In. - 11 H38F BH1125 45550
1 3/8 In. x 13 In. x 5/8 In. - 11 H38F BH1375 45552
1 1/2 In. x 13 In. x 5/8 In. - 11 H38F BH1500 45554
1 5/8 In. x 13 In. x 1-1/4 In. - 7 H38F BH1625 45555
1 3/4 In. x 13 In. x 1-1/4 In. - 7 H38F BH1750 45556
1 7/8 In. x 13 In. x 1-1/4 In. - 7 H38F BH1875 45561
2 In. x 13 In. x 1-1/4 In. - 7 H38F BH2000 45563
2 1/4 In. x 13 In. x 1-1/4 In. - 7 H38F BH2250 45564
2 3/4 In. x 13 In. x 1-1/4 In. - 7 H38F BH2750 45565
3 In. x 13 In. x 1-1/4 In. - 7 H38F BH3000 45567
3 1/4 In. x 13 In. x 1-1/4 In. - 7 H38F BH3250 45568
3 1/2 In. x 13 In. x 1-1/4 In. - 7 H38F BH3500 45569
4 In. x 13 In. x 1-1/4 In. - 7 H38F BH4000 45571
4 1/4 In. x 13 In. x 1-1/4 In. - 7 H38F BH4250 45572
12 In. x 13 In. x 1-1/4 In. - 7 H42Z 4845
14 In. x 16 In. x 1-1/4 In. - 7 H42Z 4879
3 In. x 13 In. x 1-1/4 In. - 7 H42Z 5011
3/4 In. x 12 In. x 5/8 In. - 11 H42Z 5171
7/8 In. x 12 In. x 5/8 In. - 11 H42Z 5191
1 5/8 In. x 13 In. x 1-1/4 In. - 7 H42Z BH1625 15038
6 In. x 13 In. x 1-1/4 In. - 7 H42Z BH6000 18150
7 In. x 13 In. x 1-1/4 In. - 7 H42Z BH7000 18151
8 In. x 13 In. x 1-1/4 In. - 7 H42Z BH8000 18152
2 1/2 In. x 13 In. x 1-1/4 In. - 7 H42Z BH2500 18343
16 In. x 18 In. x 1-1/4 In. - 7 H42Z BH16000 18344
24 In. x 26 In. x 1-1/4 In. - 7 H42Z BH24000 18345
20 In. x 22 In. x 1-1/4 In. - 7 H42Z BH20000 18682
2 In. x 13 In. x 1-1/4 In. - 7 H42Z BH2000 20301
1 In. x 13 In. x 5/8 In. - 11 H42Z BH1000 21539
3 1/4 In. x 13 In. x 1-1/4 In. - 7 H42Z BH3250 21540
4 1/2 In. x 13 In. x 1-1/4 In. - 7 H42Z BH4500 21541
5 In. x 13 In. x 1-1/4 In. - 7 H42Z BH5000 21542
5 1/2 In. x 13 In. x 1-1/4 In. - 7 H42Z BH5500 21543
4 In. x 13 In. x 1-1/4 In. - 7 H42Z BH4000 21917
2 In. x 13 In. x 1-1/4 In. - 7 HOL BHW2000 20102
2 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHW2250 28637
3 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHW3250 28671
3 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL BHW3500 22164
4 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHW4250 28178
4 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL BHW4500 22165
5 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL BHW5500 24610
6 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHW6250 28638
6 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL BHW6500 28672
7 In. x 13 In. x 1-1/4 In. - 7 HOL BHW7000 20415
9 In. x 13 In. x 1-1/4 In. - 7 HOL BHW9000 20055
10 In. x 13 In. x 1-1/4 In. - 7 HOL BHW10000 21475
2 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL 5258
2 3/4 In. x 13 In. x 1-1/4 In. - 7 HOL 5260
3 In. x 13 In. x 1-1/4 In. - 7 HOL 5263
4 In. x 13 In. x 1-1/4 In. - 7 HOL 5269
5 In. x 13 In. x 1-1/4 In. - 7 HOL 5273
6 In. x 13 In. x 1-1/4 In. - 7 HOL 5278
8 In. x 13 In. x 1-1/4 In. - 7 HOL 5281
1 In. x 13 In. x 5/8 In. - 11 HOL BHO1000 28042
1 1/8 In. x 13 In. x 5/8 In. - 11 HOL BHO1125 23312
1 1/4 In. x 13 In. x 5/8 In. - 11 HOL BHO1250 25944
1 3/8 In. x 13 In. x 5/8 In. - 11 HOL BHO1375 16137
1 5/8 In. x 13 In. x 1-1/4 In. - 7 HOL BHO1625 16056
1 3/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHO1750 16138
1 7/8 In. x 13 In. x 1-1/4 In. - 7 HOL BHO1875 16145
2 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHO2250 16148
2 3/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHO2750 16160
3 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHO3250 16189
4 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHO4250 26118
4 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL BHO4500 27383
5 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL BHO5500 16194
6 1/4 In. x 13 In. x 1-1/4 In. - 7 HOL BHO6250 27782
6 1/2 In. x 13 In. x 1-1/4 In. - 7 HOL BHO6500 66853
12 In. x 13 In. x 1-1/4 In. - 7 HOL BHO12000 18589
14 In. x 12 In. x 1-1/4 In. - 7 HOL BHO14000 50495
18 In. x 12 In. x 1-1/4 In. - 7 HOL BHO18000 25193
20 In. x 12 In. x 1-1/4 In. - 7 HOL BHO20000 16201
24 In. x 12 In. x 1-1/4 In. - 7 HOL BHO24000 76449
