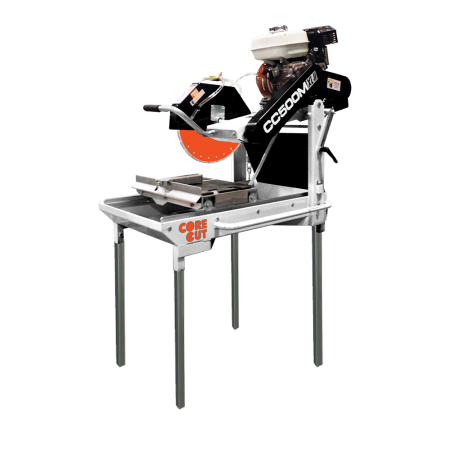

CC500MXL2 Masonry Saw

CC500MXL2 Masonry Saw

Versatile and Powerful


14" Capacity


Gasoline and Electric

Side carrying handles are standard.

More Views

  • CC5000MXL2 Shown with Optional Folding Stand
  • CC500MXL2 Dimensions
  • Removing the saw head is simple. Just pull two locking pins and lift the head off of the frame. The cutting depth adjustment is on the side of the frame instead of the back.
  • CC500MXL2 Folding Stand with Wheel Kit

Features & Benefits:

  • Stay level blade guard
  • Removable cutting head
  • Leg kit standard-folding stand optional
  • Side carrying handles
  • Replaceable conveyor cart rails
  • Includes water pump
  • Vulcanized rubber coated material slide cart
  • Open throat cutting
  • Easy and safe access to depth control lock
  • Open back cutting allows longer material to be cut
  • Heavy duty frame design help resist damage to saw body
  • Reinforced slide rails keep the cart running smoothly
  • Simple yet strong design allows easy maintenance
  • Sealed drain hole on the bottom of the tray allows quick clean up

 Specifications:

Maximum Depth of Cut:

 5”

Blade Shaft Diameter:

 7/8”

Arbor Diameter:

 1”

Blade Shaft Bearings:

 Flange block ball bearings

Blade Shaft Drive:

 2 belt

Blade Mounting:

 Right (electric), Left (gas)

Blade Raise/Lower:

 Counterbalanced, spring tensioned head pivots on two 7/8” flange block bearings

Blade Coolant:

 Dual spray tubes, pump fed (electric models), pump from tray (gas models)

Air Filter:

 3-stage cyclone (gas models)

Fuel Capacity:

 1 gallon (gas models)

High Temp Shut-off:

 Included (electric models)



Blade Capacity Power Source Engine/Motor Make Engine/Motor Model Motor/Engine Power Part Number Catalog Number
14” Electric Baldor N/A 1.5 HP, Single Phase, 115 or 230 volt 5800799 03725
14” Electric Baldor N/A 2 HP, Single Phase, 115 or 230 volt 5800814 08667
14” Electric Baldor N/A 2.5 HP, Single Phase, 115 or 230 volt 5800801 03726
14” Electric Baldor N/A 3 HP, Single Phase, 230 volt 5800802 03728
14” Gas Briggs & Stratton Vanguard® 6.5 HP 5801217 23961
14” Gas Lifan LF168F 6.5 HP 5801101 34008
