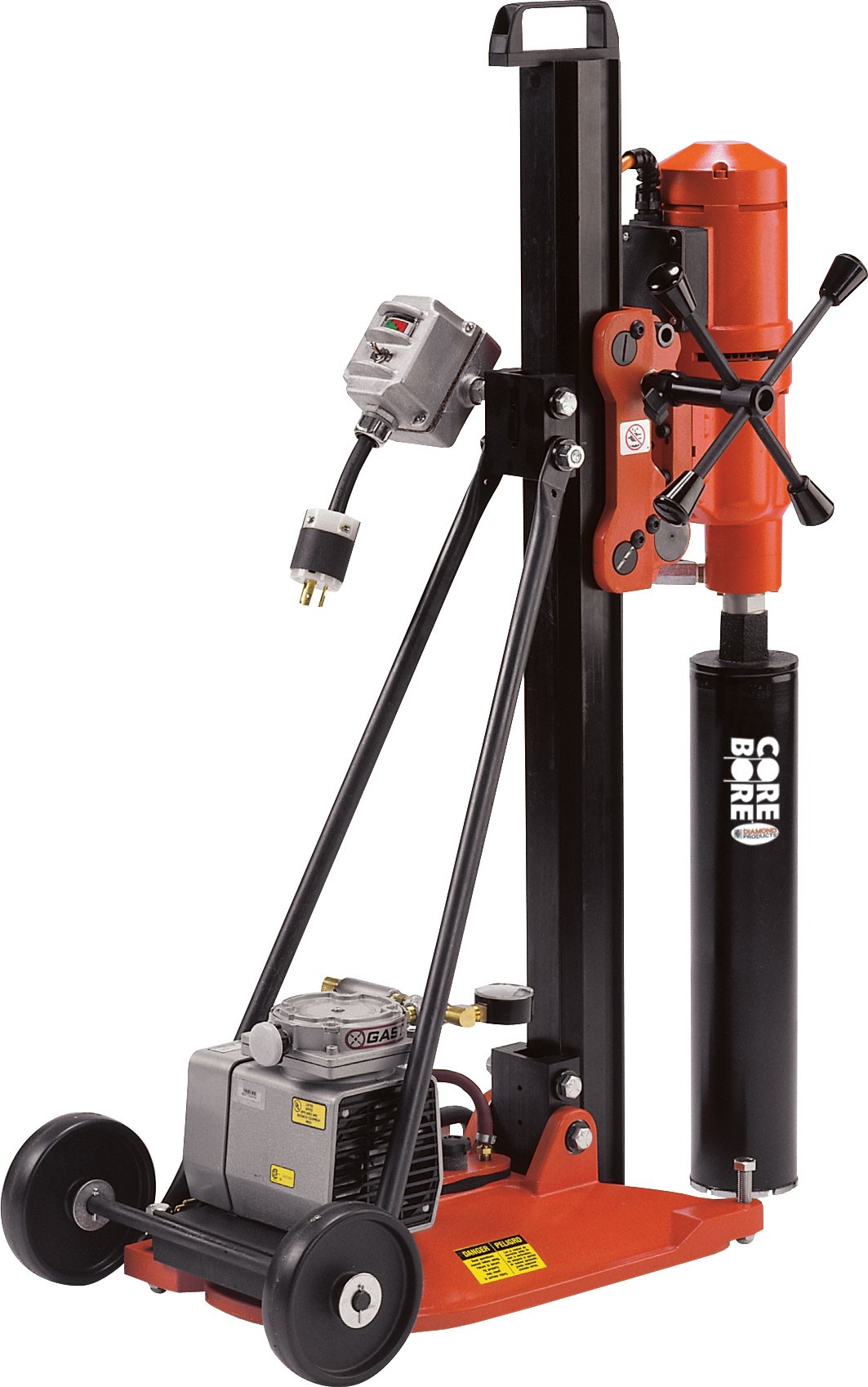

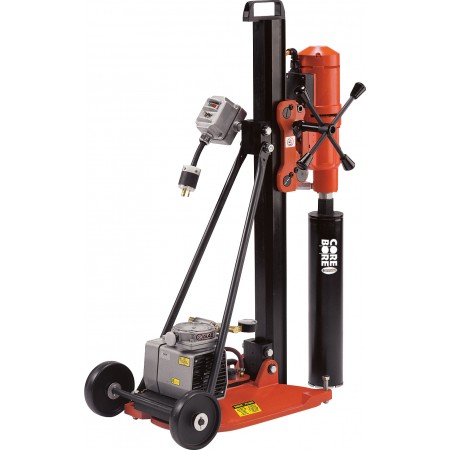

M-5 Heavy Duty Quick Disconnect Core Rigs

M-5 Heavy Duty Quick Disconnect Core Rigs

12” Standard Bit Capacity, 20” w/Spacers
The Lightest Big Rig On The Market!
Export List As PDF

M-5 Heavy Duty Quick Disconnect Core Rigs

More Views

  • M-5 Combo - Location to drill anchor hole = 13” measured from the center of the motor spindle to the center of the anchor/vacuum slot on base
  • M-5 Anchor - Location to drill anchor hole = 13-1/2” measured from the center of the motor spindle to the center of the anchor slot on base
  • Anchor Stand Only
  • Combination Angle Stand Only - Angled Position
  • Combination Angle Stand Only - Vertical Position
  • Vacuum seal retention keeps vacuum gasket held into the base longer for a durable seal

12” Standard Bit Capacity, 20” w/Spacers

Features & Benefits:

  • Quick release motor mount
  • 4-spoke sliding handle (can be used on right or left)
  • Positive carriage lock
  • 2-1/2” x 3” extruded aluminum light weight column (mast) that is hard anodized to prevent wear
  • Quick release vacuum button
  • Top carrying handle (ceiling jack available)
  • Large bit capacity in a smaller rig system
  • Allows for mounting hydraulic motors
  • Angle stand to drill up to 45°
  • Double column support for increased stability
  • Easily adjustable slide bearings



Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220001 47175
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4220002 49581
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig with add-on vacuum base and vacuum pump 4245110 81063
4004 20 amp, 115 volt Milwaukee 300/600 Complete rig with add-on vacuum base and vacuum pump 4220005 59637
4096 20 amp, 115 volt Milwaukee 450/900 Complete rig with add-on vacuum base and vacuum pump 4220006 47172
4005 20 amp, 115 volt Milwaukee 600/1200 Complete rig with add-on vacuum base and vacuum pump 4220007 69870
4097-20 20 amp, 115 volt Milwaukee 500/1000 Complete rig with add-on vacuum base and vacuum pump 4220009 56171
DK22 11 Amp Weka DK22 (230V) Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220010 62089
DK22S 11 Amp Weka DK22S (230V) Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4220011 49825
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig without vacuum pump 4220017 70410
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig without vacuum pump 4220018 70564
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig without vacuum pump 4245108 81064
4004 20 amp, 115 volt Milwaukee 300/600 Complete rig without vacuum pump 4220020 66833
4096 20 amp, 115 volt Milwaukee 450/900 Complete rig without vacuum pump 4220021 70023
4005 20 amp, 115 volt Milwaukee 600/1200 Complete rig without vacuum pump 4220022 74223
4097-20 20 amp, 115 volt Milwaukee 500/1000 Complete rig without vacuum pump 4220024 72396
DK22 11 Amp Weka DK22 (230V) Weka 300/640/960 Complete rig without vacuum pump 4220025 10187
DK22S 11 Amp Weka DK22S (230V) Weka 420/880/1300 Complete rig without vacuum pump 4220026 84682
