CB215 Hand-Held Motor - Drill Motor - Coring Equipment - Products

CB215 Hand-Held Motor


3" Bit Capacity (Hand-Held)

6" Bit Capacity (Mounted)

Export List As PDF


More Views

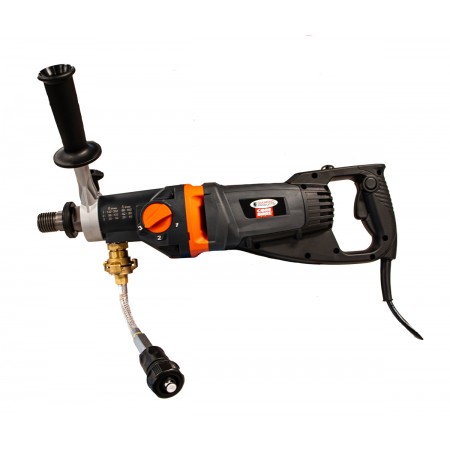

  • CB215
  • CB215 in case


  • 3-Speed gear box (1000/1600/4450 RPM)
  • Integrated convertaible port allows quick change from water feed for wet drilling to through-the spindle dust collection for dry drilling
  • D-handle for compfortable drilling
  • Side handle for stability (removable)
  • Can be mounted to the M-3 and M-4 core rig stands
  • LED load indicator in visible location
  • LIght-weight for easy coring - 13 lbs.
  • Includes carrying case, vacuum adapter, water connection and wrench
Power 1800 Watt, 115 Volt, 15 Amp
Spindle 1.250"-7 with 5/8"-11 adapter
Part # 4244142
Catalog #  108730
