CORE PREP Scarifiers

The Core Prep Scarifiers give you the option of a gas engine or electric motor which gives you the flexibility for construction sites with or without power supply. The main applications include surface texturing, scarifying, planing, grooving, cleaning, descaling and removal of road markings.


8" Milling Width (3HP Electric)


8" Milling Width (4.8 Gas)


13-1/4" Milling Width with Diamond (20HP Electric)


12-1/2" Milling Width with cutter drum (20HP Electric)


13-1/4" Milling Width with Diamond (35HP Gas)


12-1/2" Milling Width with cutter drum (35HP Gas)


12-1/2" Milling Width low chassis (25HP Electric)

Export List As PDF

CORE PREP Scarifiers

More Views





FEATURES:

  • Gas or electric options
  • Height adjustment by hand wheel
  • Quick lift lever
  • Easy to maneuver
  • Belt tensioner with durable toothed belt
  • Vacuum connection

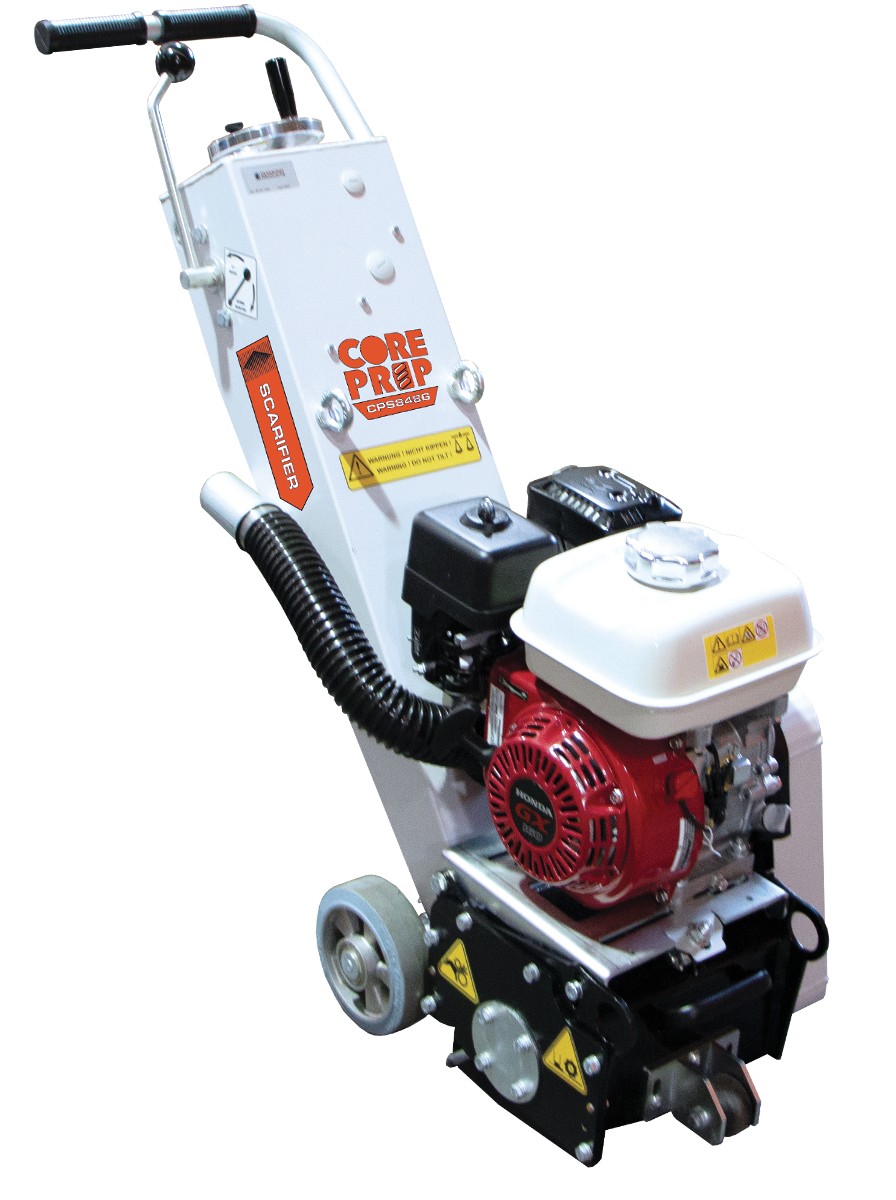

CPS83E1 and CPS848G SPECIFICATIONS
Model CPS83E1 Electric (Push) CPS848G Gas (Self-Propelled
Power  230V / 60Hz / 1PH / 3HP  4.8 HP
Milling Width 8"  8"
Tool Speed 1750 RPM  1917 RPM
Vacuum Connection 2"  2"
Application Dry/wet  Dry/wet
Length 39.3"  39.3"
Width 14.56"  14.56"
Height 39.3"  39.3"
Weight 134 lbs.  134 lbs.

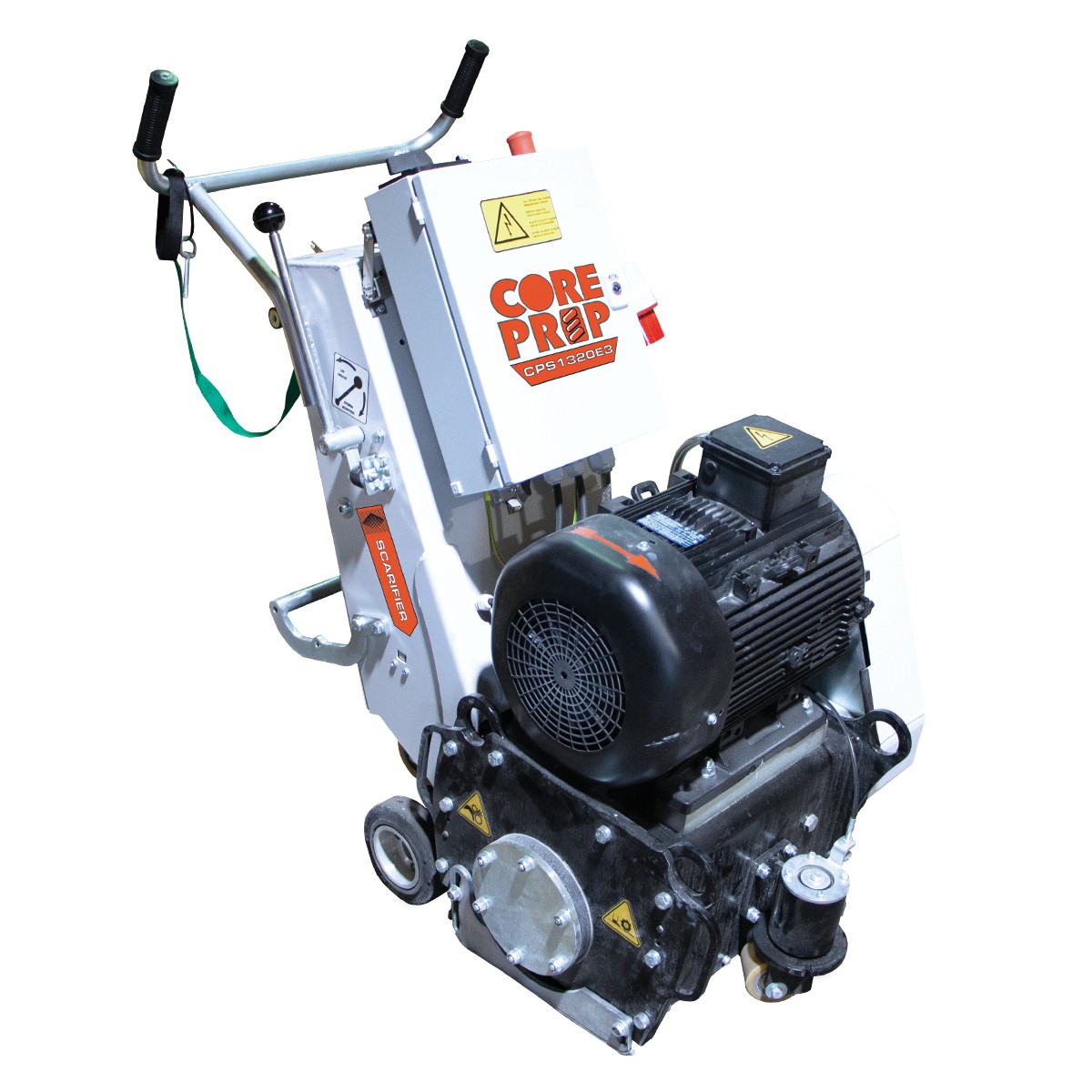

CPS1320E3 and CPS1335G SPECIFICATIONS
Model CPS1320E3 Electric (Self-Propelled) CPS1335G Gas (Self-Propelled) CPS1325LCE3 Electric Low Chassis (Self-Propelled)
Power 460V / 60Hz / 3PH / 20 HP 35 HP 460V / 60Hz / 3PH / 25HP
Milling Width 12-1/2" w/diamond, 13-1/2" w/drum 12-1/2" w/diamond, 13-1/2" w/drum 12-1/2"
Vacuum Connection 2-3/4" 2-3/4" 2-3/4"
Application Dry Dry Dry
Length 46-1/2" 46-1/2" 46-1/2"
Width 25" 26" 25"
Height 38-1/2" 43-1/4" 38-1/2"
Weight 652 lbs. 588 lbs. 652 lbs.
