Dragon Claw Ring Saw Blades

Dragon Claw Ring Saw Blades

Sizes: 12”/16”/20”
Export List As PDF

Dragon Claw Ring Saw Blades

More Views

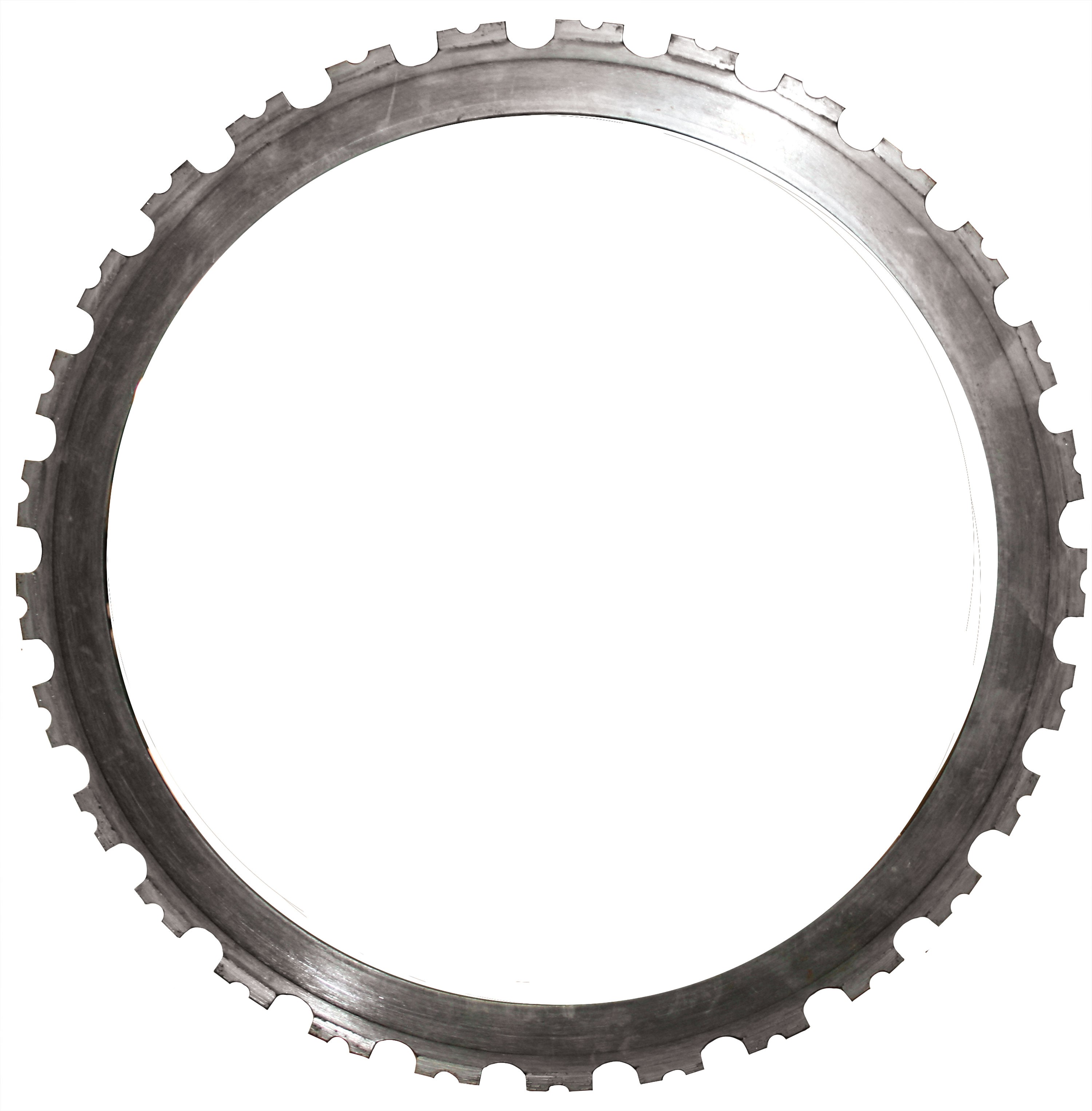

  • Dragon Claw Ring Saw Blades
  • For use ONLY with the Dragon Ring Saw
  • Special 16mm split segments for fast cutting and slurry removal
  • Use with water only
  • 12” cutting depth with 16” blade
  • 16” cutting depth with 20” blade

Wear plate is included with Dragon Claw blades.

See Dragon Saw operator’s manual for replacement frequency and instructions.

To ensure maximum performance, water is required to cool wire during the cutting process.

Replacement Wear Plate: Part #-6061184, Cat # 86515

Ring Blade Bond Specifications



Size Bond Specification Part Number Catalog Number
16" x .155 C41HM-16 RSH16155WPM16 29301
16" x .155 C42HM-16 RSH16155WPM16 93866
20" x .155 C41HM-16 RSH20155WPM16 29303
20" x .155 C42HM-16 RSH20155WPM16 93865
12” x .155 CRSDR18HM-16 RSH12155WPM16 69664
12” x .155 CRSDR20HM-16 RSH12155WPM16 77770
16” x .155 CRSDR18HM-16 RSH16155WPM16 61775
16” x .155 CRSDR20HM-16 RSH16155WPM16 38330
20” x .155 CRSDR18HM-16 RSH20155WPM16 61781
20 x .155 CRSDR20HM-16 RSH20155WPM16 16362
