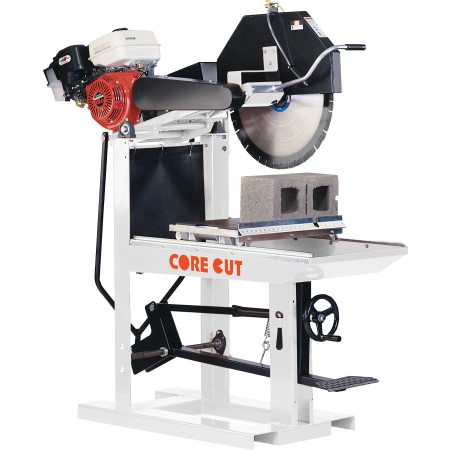

CC800M BLOCK SAW

Rugged Block Saw For Large Applications


24” Capacity


Gasoline and Electric Models

Export List As PDF

CC800M BLOCK SAW

More Views

Features & Benefits:

  • 24” blade cuts a 10” block in a single pass
  • Variety of power options
  • Stay level blade guard and enclosed blade shaft
  • Replaceable cart travel rails
  • Durable 3/16” steel frame
  • Includes water pump
  • Easy rolling 16” x 25” aluminum cutting cart/tray with vulcanized rubber coated non-slip top
  • Large capacity, deep tapered water tray
  • Foot pedal controlled operating head leaves the operators hands free to guide material
  • Hand wheel for quick and easy blade cutting depth adjustment
  • Enclosed cart wheels prevent damage
  • Forklift opening for easy transport
  • 2 V-belts promote efficient delivery of power to the blade
  • Open back design for rip cutting longer materials
  • Counterbalanced stay level blade guard assures the head is parallel to the cutting cart at all times

Specifications:

Maximum Depth of Cut: 8” with 20” blade, 10” with 24” blade
Arbor Diameter: 1”
Blade Shaft Bearings: Flange block ball bearings
Blade Shaft Drive: 2 premium grip notch v-belt
Blade Raise/Lower: Counterbalanced, spring tensioned head pivots on two 1” flange block bearings
Blade Coolant: Dual spray tubes, pump fed (elecZZic models), garden hose connection (gas models)
Air Filter: 3-stage cyclone (gas models)
Fuel Capacitor: 1 gallon (gas models)
High Temp Shut-off: Included (elecZZic models)
Starter: Recoil on gas models, capacity on electric models



Blade Capacity Sawing Engine/Motor Make Motor/Engine Power Electric Start Power Source Part Number Catalog Number
20” Baldor® 5 HP-1PH, 230V No Electric 5800540 46820
20” Baldor® 5 HP-3PH, 230V No Electric 5800541A 96416
20” Baldor® 5 HP -3PH, 460V No Electric 5800541B 18533
20” Baldor® 7.5 HP-1PH, 230V No Electric 5800542 47664
20” Baldor® 7.5 HP-3PH, 230V No Electric 5800544A 96015
20” Baldor® 7.5 HP-3PH, 460V No Electric 5800544B 96336
24” Baldor® 7.5 HP-1PH, 230V No Electric 5800543 47630
24” Baldor® 7.5 HP-3PH, 230V No Electric 5800545A 97240
24” Baldor® 7.5 HP-3PH, 460V No Electric 5800545B 97000
20” Honda® GX270 8 HP, 14.1 torque (lbs.-ft.) No Gas 5800546 47024
20” Lifan® LF177F 9 HP No Gas 5801107 33971
20” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) No Gas 5800547 47047
24” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) No Gas 5800548 47046
20” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) Yes Gas 5800566 60933
24” Honda® GX390 11 HP, 19.5 torque (lbs.-ft.) Yes Gas 5800567 81160
