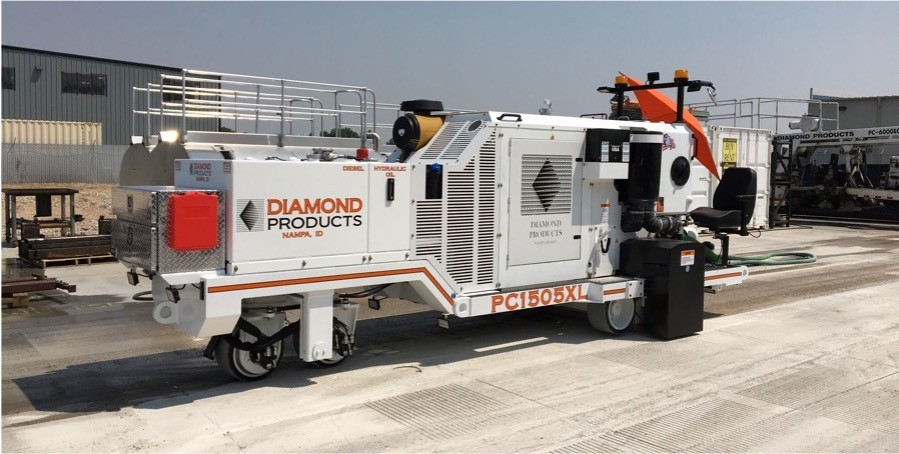

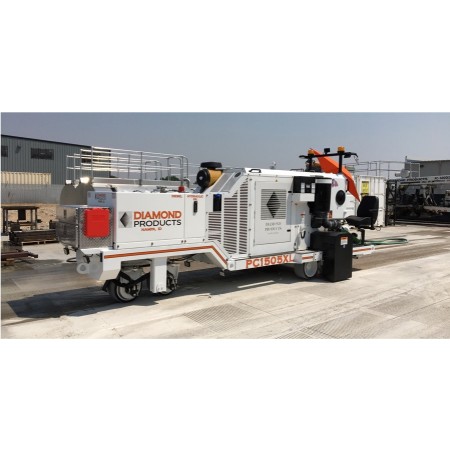

PC1505XL Pavement Grinder & Groover

Diesel Powered


Call the Nampa, ID facility at 1-800-225-0142 for more information.

Export List As PDF

PC1505XL Pavement Grinder & Groover

More Views


  • High production grinding/profiling and grooving of concrete and asphalt pavements.
  • Centrally located operator station allows for either left or right side operation.
  • OPTIONAL: Head temperature monitoring system (HTMS) with temperature display. Displays in fahrenheit or centigrade.
  • Hydraulically adjustable Raise/Lower profile/depth control wheels.
  • Equipped with operator 360 vision system with four (4) cameras and display screen.
  • Capable of grinding to within 10” (25.4cm) of a vertical wall.
  • Easy to operate and comfortable to run.
  • Equipped with odometer that measures total footage (meters) ground and has a reset-able daily production odometer and feet (meters) per minute indicator.
  • 5” (12.7cm) diameter blade shaft for use with 12” (30.48cm) diameter blades. Blades for grinding or grooving can be stacked up to 50” (127cm) cutting width.
  • Front bogey assembly is adjustable for an effective wheel base of 11’6”(3.505m) to 13’5”(4.114) Note: GRINDING/PROFILING EFFECTIVE WHEELBASE is the distance from the center of the front bogey assembly to the center of the rear Profile/Depth Control wheel assemblies located behind the cutting head. GROOVING WHEELBASE is the distance from the center of the front bogey assembly to the center of the cutting head.
  • On board vacuum system with diaphragm slurry pump and silencer.
  • Depth control wheels are side to side adjustable for accurate cut matching.
  • Manually adjusted grooving depth control wheels attach to mainframe on blade-shaft center line for accurate depth control.
  • Excellent for airport and longitudinal highway grooving

Part # PC1505XL, Catalog # 103369


Engines: Caterpillar® 7.1Liter 302HP (193.8kw)@ 2100rpm, Turbo-charged/inter-cooled, electronically controlled diesel engine. Engine Meets U.S. EPA Tier 4 Final and EU Stage V Emission Standards and meets European Machinery Directive 2006/42/EC, Service free DPF for the emissions life of the engine.  Fuel Consumption 10.8gph (40.9L/HR)
Dimensions: Length 2
3ft (7.01M), Width: 8ft 5in (2.56M) with grooving legs installed., Height 10ft (3.04M), Weight: 24,500lbs (10.6597kg)
Fuel Capacity: 150 gallons (567L)
Blade shaft: 5in diameter (12.7cm)
Blade Diameter: 12in (30.48cm)
Cutting width: 50in (127cm)
Blade shaft RPM: 1400 rpm low range, 1900 rpm high range
Blade shaft Drive: Engine power is transmitted through a manually operated PTO clutch to a right angle drive gearbox which drives a single Poly Chain GT Carbon belt.
Ground Drive:
Closed loop Hydrostatic pump drives two wheel motor assemblies. Wheel motor assemblies have integral brakes and two speed function.
Travel Speed: 0-

Vacuum System: Belt driven positive displacement blower with demister and inlet filters. 3 inch (7.62cm) slurry discharge pump.

Lighting: Full complement of LED work lights, Safety Beacons and Flashers.

Machine Controls: Forward/Reverse electronic joystick with neutral lock and integral raise/lower switch. Power steering, water on/off, 2-Speed, Brake on/off, adjustable operators seat and removable foot platform, water pressure gauge and alarm.
Instrumentation: Digital engine panel and Digital Odometer/Hydraulic Systems Pressure Monitoring Panel.
