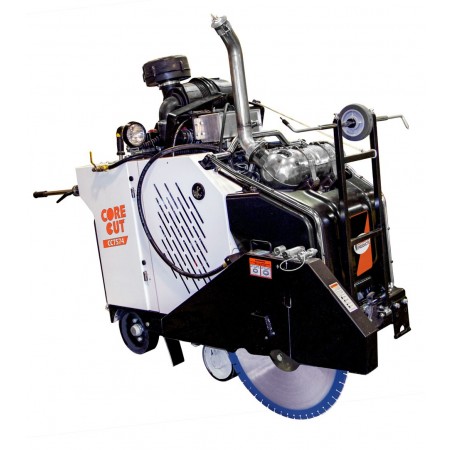

CC7574DD IN-LINE WALK BEHIND SAW In-line Walk Behind Saw with Increased Production, Lower Maintenance Costs and Better Fuel Efficiency. 20”-48” Blade Capacity Diesel Powered More Views Product Description Features & Benefits: Tier 4 Final Deutz® diesel engine Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only) Easy maneuvering self propelled drive Strongest frame on the market Hydraulic wheel motor drive Blade shaft gearbox-oil bath for low maintenance 4 stage air filter system 19-3/4” maximum cutting depth Maintenance-free DVERT® diesel oxidation catalytic converter (DOC-only, no DPF). High pressure common rail electronic fuel injection. Modern computer interface engine controls 20”-48” Blade Capacity Specifications: Maximum depth of cut with 20” blade: 7-1/4” (5” flange) Maximum depth of cut with 26” blade: 10-1/4” (5” flange) Maximum depth of cut with 30” blade: 12-1/4” (5” flange) Maximum depth of cut with 36” blade: 14-3/4” (6” flange) Maximum depth of cut with 42” blade: 17-1/4” (7” flange) Maximum depth of cut with 48” blade: 19-3/4” (8” flange) Engine: Deutz® Turbo Diesel Engine Specs: 4 Cylinder, 3.3 Liter Max Engine Power: 74.3HP at 2,600 RPM Power at the Blade Shaft: 74 Horsepower Emission Regulation: EPA Tier 4 Final Compliant Blade shaft diameter: 2” Arbor size: 1” w/drive pin Blade shaft bearings: Multiple ball bearings in oil bath Blade shaft drive: 20 V-belts Blade mounting: Right or Left Blade raise & lower: Electro-hydraulic pump Blade Coolant: Dual multi-spray tubes Drive speed: 0-250 feet/min forward and reverse Transmission: Hydro pump powering dual wheel motors Air filter: 4 stage w/restriction indicator Fuel capacity: 9 gallons Blade Capacity Sawing Power Source Sawing Engine/Motor Make Motor/Engine Power Speeds Part Number Catalog Number 20" Diesel Deutz® Turbo 74 HP Single Speed 5801256 75010 26” Diesel Deutz® Turbo 74 HP Single Speed 5801257 75012 30” Diesel Deutz® Turbo 74 HP Single Speed 5801258 74116 36” Diesel Deutz® Turbo 74 HP Single Speed 5801259 75013 42” Diesel Deutz® Turbo 74 HP Single Speed 5801260 75015 48” Diesel Deutz® Turbo 74 HP Single Speed 5801261 75016 20" Diesel Deutz® Turbo w/Clutch 74 HP Single w/clutch 5801262 75021 26” Diesel Deutz® Turbo w/Clutch 74 HP Single w/clutch 5801263 75024 30” Diesel Deutz® Turbo w/Clutch 74 HP Single w/clutch 5801264 75026 36” Diesel Deutz® Turbo w/Clutch 74 HP Single w/clutch 5801265 75027 42” Diesel Deutz® Turbo w/Clutch 74 HP Single w/clutch 5801266 75028 48” Diesel Deutz® Turbo w/Clutch 74 HP Single w/clutch 5801267 75029 30” Diesel Deutz® Turbo 74 HP 3-Speed (20”/26”/30”) 5801268 74116 36” Diesel Deutz® Turbo 74 HP 3-Speed (20”/30”/36”) 5801269 75017 42” Diesel Deutz® Turbo 74 HP 3-Speed (26”/36”/42”) 5801270 75018 48” Diesel Deutz® Turbo 74 HP 3-Speed (30”/42”/48”) 5801271 75019 * Required Fields Attachments CC7574DD Parts List CC7574 Operator Manual
