86 ft wire capacity

High-Cycle Electric Powered

Export List As PDF

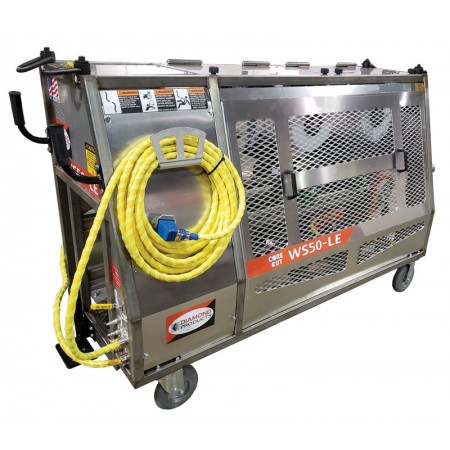

WS50-LE Wire Saw

More Views

  • WS50-LE Wire Saw


  • Twin 25hp high-cycle compact electric motors: reduces weight and size vs. traditional electric motors
  • Twin pneumatic cylinder take up: simple automatic take up and constant tensioning completely adjustable by operator
  • 86’ (26m) total wire take up and storage Large capacity storage for larger cuts and less down time repositioning saw
  • Twin 16.50” diameter poly-coated drive wheels: Increases friction on cutting wire
  • Load adapter drive wheel to motor connection : Reduces load on motor to prolong motor life
  • Low entry pull side: Reduces danger of broken cutting wire
  • Low friction, easily positionable wire guide pulley
  • Fully positionable wire guide pulleys
  • Multiple positioning/moving options: Load rated lifting rings, integrated for pockets, low resistance free rolling caster
  • Interior water spray system : Allows operator to choose to spray water directly on idler wheels and cool cutting wire.


Length: 86.00”
Width: 32.00”
Height: 52.00”
Weight: Saw-1100lbs, Power Panel 200lbs>
Part # 5801622
Cat # 86582

Additional Information

Model Group No
Model Number No
Catalog Number 08922
Part Number 5801600
Engine/Motor Make No
Engine/Motor Model No
Sawing Engine/Motor Model No
Motor/Engine Power No
Power Source No
Power Source No
Blade Capacity No
