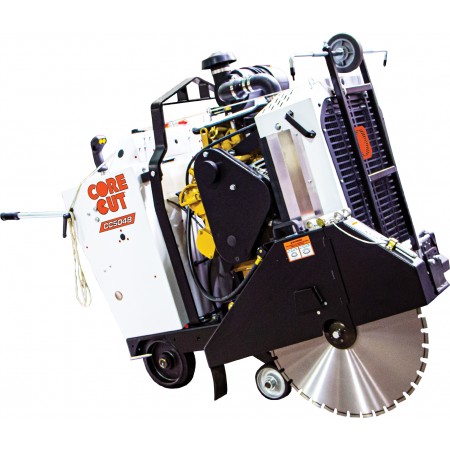

CC5048DCV Front Pivot Saw

CC5048DCV Front Pivot Saw

14" - 42" Blade Capacity with 17.5" Max Cutting Depth


48 Horsepower CAT Certified Tier 4 Diesel Engine for Clean, Reliable Power


Two Engine Options: 1.7Liter or 2.2Liter





Export List As PDF

CC5048DCV

More Views

  • CC5048DCV in Action
  • Advanced Digital Control Panel
  • CC5048DCV Dimensions
  • CC5048DCV

Features & Benefits:

Advanced Digital 4" Display - Enhanced rich color graphics for superior visibility in bright light.  Choose between blade speed, engine speed, and engine torque views with critical diagnosis.  Blade overspeed alert that warns of blade RPM exceeding safe limits.  Engine service alerts offer maintenance reminders for optimum engine function.

Adjustable Blade Lowering Speed - Dash-mounted for quick, precise adjustment.

Large 6 Gallon Fuel Tank - Convenient left-side filler along with electronic low fuel indication.

Effective Weight Balance - Front-to-rear weight distribution for balanced optimum performance.

Quick Disconnect Flanges - 7" Flanges that quickly detach from stuck blade to minimize downtime.

Simplified Serviceability - Easy, open component access to speed routine maintenance.

Other Advanced Features:

  • Single hand sawing control with forward/reverse/raise/lower all in one ergonomic grip
  • Three-position handlebars set and lock at comfortable, preferred angles
  • Quick access rear cover screen for inspecting and service with simple latch convenience
  • Heavy-duty wheels with durable polyurethane tread on front and thick rubber tread on the rear
  • Automatic parking brake with hydraulic activation in stop position gate
  • Robust blade shaft offers reliable support from 2 pillow block style, precision ball bearings
  • Spline drive PTO gives precision zero side load drive to dampen vibration and shock loads
  • Advanced air cleaner with radial seal primary and secondary filters with maintenance indicator
  • Sealed electronic protection resists heat, moisture, shock, and vibration

Includes: Telescoping front and rear pointers, fuel cooler, low coolant level sensor, oil drain valve, air restriction indicator, travel speed
push/pull cable, positive front axle depth stop, slip-on blade flange guard, polycarbonate decals, blade shaft wrench

CC5048DC Front Pivot Walk Behind Saw with 48HP CAT Engine 2.2L
Model # Part # Catalog # Speed Blade Capacity Weight (lbs.)
CC5048DC-14 5801420 102360 Single 14" 1,703
CC5048DC-20 5801421 102361 Single 20" 1,713
CC5048DC-26 5801422 101014 Single 26" 1,735
CC5048DC-30 5801423 102363 Single 30" 1,743
CC5048DC-36 5801424 102364 Single 36" 1,764
CC5048DC-42 5801425 102365 Single 42" 1,785
CC5048DC-3-14 5801430  105045 Three 14" 1,703
CC5048DC-3-20 5801431  105046  Three 20"  1,713
CC5048DC-3-26  5801432  104363  Three 26"  1,735
CC5048DC-3-30  5801433  105048  Three 30"  1,743
CC5048DC-3-36  5801434  104049  Three 36"  1,764
CC5048DC-3-42  5801435  105050  Three 42"  1,785

CC5048DCV Front Pivot Walk Behind Saw with 48HP CAT Engine 1.7L
Model # Part # Cat # Speed Blade Size Weight (lbs.)
 CC5048DCV-14  5801570  107939  Single 14"  1,603
 CC5048DCV-20 5801571  107940  Single  20"  1,613
CC5048DCV-26  5801572  107941  Single  26"  1,635
CC5048DCV-30  5801573  107942  Single  30"  1,643
CC5048DCV-36  5801574  107943  Single  36"  1,664
CC5048DCV-42  5801575  107944  Single  42"  1,685
 CC5048DCV-3-14 5801576  107945   Three 14"  1,603
CC5048DCV-3-20  5801577  107946  Three  20"  1,613
CC5048DCV-3-26  5801578  107947  Three  26"  1,635
CC5048DCV-3-30  5801579  107948  Three  30"  1,643
CC5048DCV-3-36  5801580  107949  Three  36"  1,664
CC5048DCV-3-42  5801581  107950  Three  42"  1,685
