HYDRA-GEN Power Units

HYDRA-GEN Power Units

Available as Skid-Mounted or Installed in Custom Utility Trucks




Export List As PDF

HYDRA-GEN Power Units

More Views

Hydra-Gen Takes the Place of:

  • 480 volt-50 KW generator
  • 25 gpm-2500 psi hydraulic unit
  • 120 volt-5000 watt generator

Available as in-truck model or enclosed for outdoor flat beds

Fits on most utility trucks and the Diamond Products Custom Utility Truck

Specifications:

Engine:

John Deere Tier III-126 HP, 4045T turbo-diesel
High temperature and low oil safety shut off switches
Hour meter, temperature gauge, amp meter, oil pressure gauge (fuel tank not included)

Electrical: Two generators available: 50 kw or 75 kw (See next page for variations)
Hydraulics: Variable displacement Eaton piston pump with pressure flow compensator
Flow: 30GPM 3000 psi remotely controllable flow
Dimensions: 30” wide x 78” long x 64” tall (73” to top of stack)



Model Number Variations:

CPHG126-50SE

Part # 4250300, Cat # 27765

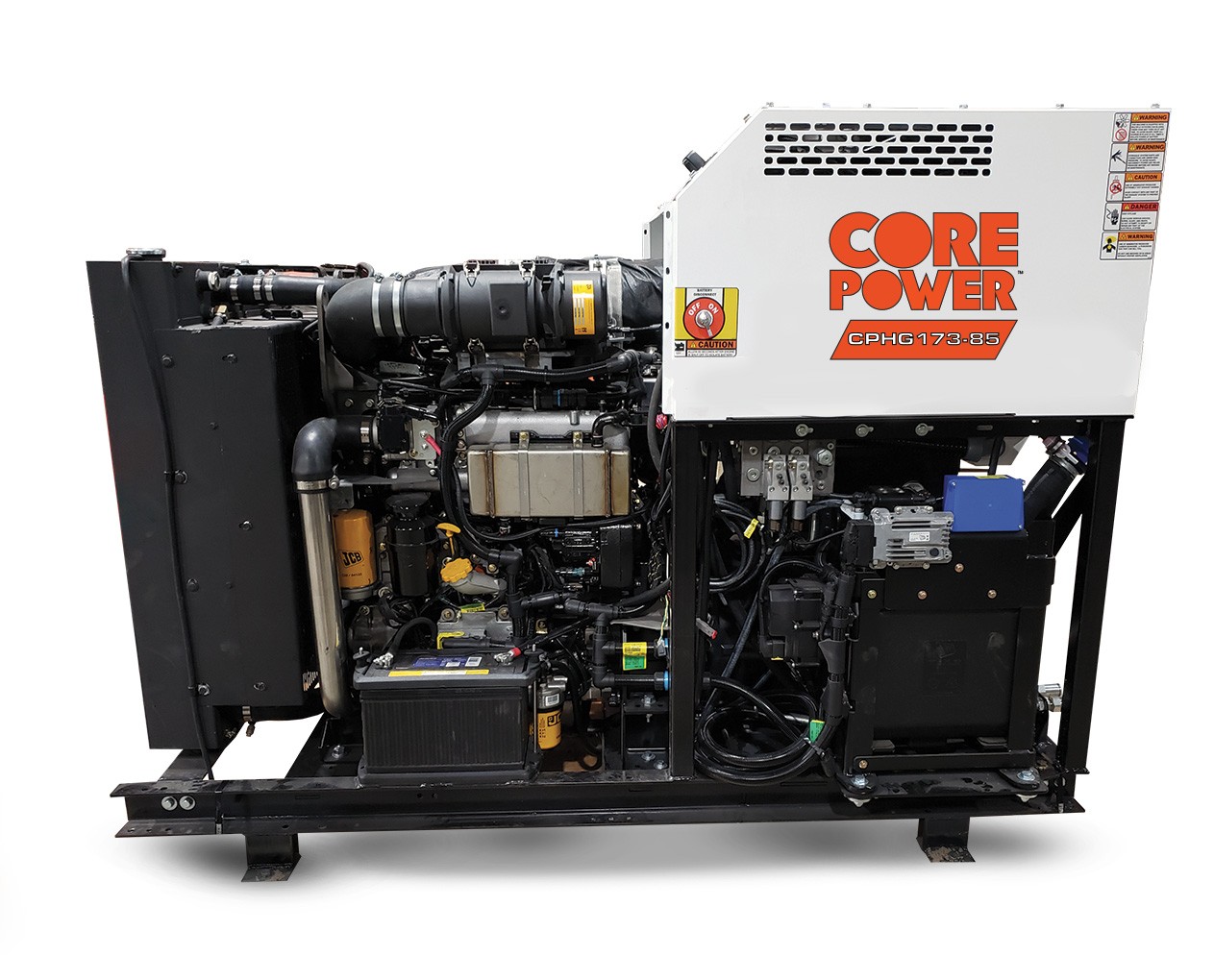

  • Open Skid Mounted Unit With Remote Hydraulic Flow Control/Engine Throttle
  • 126HP John Deere Turbo Diesel Engine
  • 50KW 480 3 Phase Generator , 70 Amp Service
  • 30GPM 3000psi 40 Gallon Hydraulic System
  • Built In Hydraulic Flow Test Kit

Electrical System Includes :
50Amp 480V 3 Phase (Twist Lock Receptacle)
15Amp 480V 3 Phase (Twist Lock Receptacle)
30Amp 240V 1 Phase (Twist Lock Receptacle)
30Amp 120V 1 Phase (Twist Lock Receptacle)
20Amp 120V 1 Phase (GFI Outlet)

CPHG126-50TE

Part # 4250301, Cat # 27812

  • Open Skid Mounted Unit, To Be Used In Truck Setups ONLY, in conjunction with Power Reel Rack Assembly (PN 6070216)
  • 126HP John Deere Turbo Diesel Engine
  • 50KW 480 3 Phase Generator, 70 Amp Service
  • 30GPM 3000psi 40 Gallon Hydraulic System
  • Built In Hydraulic Flow Test Kit

Electrical System Includes :
50Amp 480V 3 Phase (Twist Lock Receptacle)
15Amp 480V 3 Phase (Twist Lock Receptacle)
30Amp 240V 1 Phase (Twist Lock Receptacle)
30Amp 120V 1 Phase (Twist Lock Receptacle)
20Amp 120V 1 Phase (GFI Outlet)

CPHG126-75SE

Part # 4250302, Cat # 27817

  • Open Skid Mounted Unit With Remote Hydraulic Flow Control/Engine Throttle
  • 126HP John Deere Turbo Diesel Engine
  • 75KW 480 3 Phase Generator, 100 Amp Service
  • 30GPM 3000psi 40 Gallon Hydraulic System
  • Built In Hydraulic Flow Test Kit

Electrical System Includes :
100Amp 480V 3 Phase (Pin Receptacle)
15Amp 480V 3 Phase (Twist Lock Receptacle)
30Amp 240V 1 Phase (Twist Lock Receptacle)
30Amp 120V 1 Phase (Twist Lock Receptacle)
20Amp 120V 1 Phase (GFI Outlet)

CPHG126-75TE

Part # 4250303, Cat # 27830

  • Open Skid Mounted Unit, To Be Used In Truck Setups ONLY, in conjunction with Power Reel Rack Assembly (PN 6070216)
  • 126HP John Deere Turbo Diesel Engine
  • 50KW 480 3 Phase Generator,100 Amp Service
  • 30GPM 3000psi 40 Gallon Hydraulic System
  • Built In Hydraulic Flow Test Kit

Electrical System Includes :
100Amp 480V 3 Phase (Pin Receptacle)
15Amp 480V 3 Phase (Twist Lock Receptacle)
30Amp 240V 1 Phase (Twist Lock Receptacle)
30Amp 120V 1 Phase (Twist Lock Receptacle)
20Amp 120V 1 Phase (GFI Outlet)

CPHG126-50SE

Part # 4250305, Cat # 27832

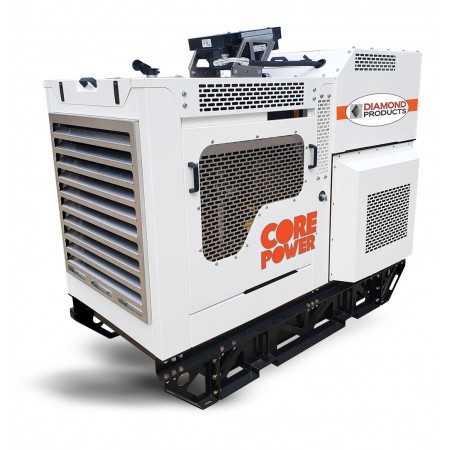

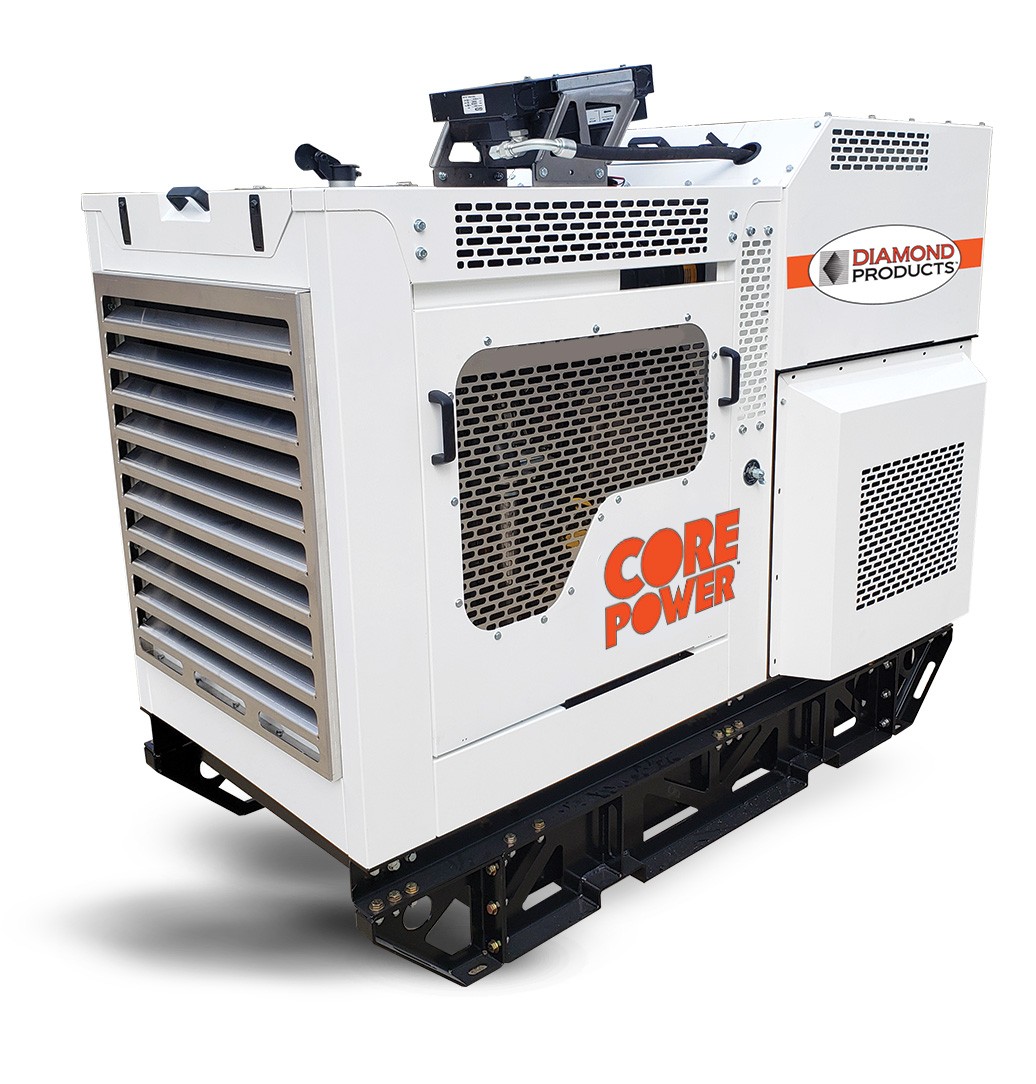

  • Enclosed Skid Mounted Unit With Remote Hydraulic Flow Control/Engine Throttle
  • 126HP John Deere Turbo Diesel Engine
  • 50KW 480 3 Phase Generator, 70 Amp Service
  • 30GPM 3000psi 40 Gallon Hydraulic System
  • Built In Hydraulic Flow Test Kit

Electrical System Includes :
50Amp 480V 3 Phase (Twist Lock Receptacle)
15Amp 480V 3 Phase (Twist Lock Receptacle)
30Amp 240V 1 Phase (Twist Lock Receptacle)
30Amp 120V 1 Phase (Twist Lock Receptacle)
20Amp 120V 1 Phase (GFI Outlet)
• Electrical System Enclosed In Water Tight Enclosure



Power Source Generator Output Mounting/Housing Part Number Catalog Number
Hydra-Gen 50 kw Skid mount 4250300 27765
Hydra-Gen 50 kw Truck mount 4250301 27812
Hydra-Gen 75 kw Skid mount 4250302 27817
Hydra-Gen 75 kw Truck mount 4250303 27830
Hydra-Gen 50 kw Skid mount enclosed 4250305 27032
Electric 75 kw Skid mount enclosed
