CC1823BVXLP Propane Walk Behind Saw

CC1823BVXLP Propane Walk Behind Saw

Runs Clean and Efficiently

14" to 20" Blade Capacity


Export List As PDF


More Views

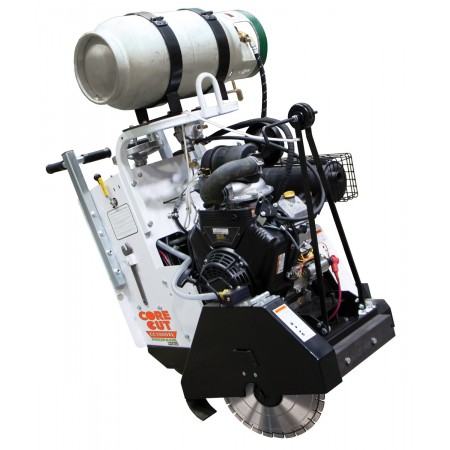

  • CC1823BVXLP Saw
  • CC1823BVXLP Control Panel

Features & Benefits

  • Briggs Vanguard engine converted to propane vapor draw
  • Horizonally-mounted 20 lbs. propane tank
  • Self-propelled travel for easy cutting
  • Easy access to battery with a heavy-duty isolator switch to prevent battery drain
  • Screw feed raise and lower system
  • Lifting hook standard on all models
  • Self-aligning blade shaft bearings
  • Includes: electric start, low oil alert, and hour meter
Max Depth of Cut with 14" Blade 4-4/8"
Max Depth of Cut with 20" Blade 7-5/8"
Blade Shaft RPM 2600
Blade Shaft Diameter 1-1/4"
Arbor Size 1" with single drive pin
Blade Shaft Drive 4 belts
Blade Mounting Right or left
Transmission Eaton Model 6
Drive Speed 0-80 feet per minute
Fuel Tank Size 20 pound
Wheel Dimension

5" x 1-1/2" x 3/4" (Front)

6" x 1/-1/2" x 5/8" (Back)

Model # Engine Make/Model Engine Power Blade Capacity Part # Cat # Weight (lbs.)
CC1823BVXLP-14S Converted Briggs Vanguard 23 HP 14" 5801426 101227 480
CC1823BVXLP-20S Converted Briggs Vanguard 23 HP 20" 5801427 101228 485
