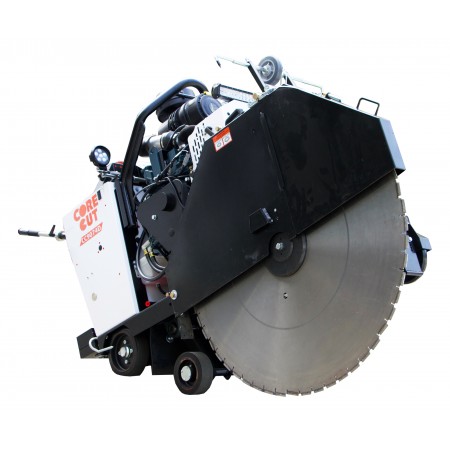

CC9074DK Deep Cut Saw

CC9074DK Deep Cut Saw

High Performance, Deep Cutting Saw Loaded with User-Friendly Features

60" Blade Capacity

Diesel Powered

Made in the U.S.A.

Export List As PDF

CC9074DK Deep Cut Saw

More Views

Features & Benefits:

  • Tier 4 Final Kubota diesel engine
  • Advanced digital 7" display with engine service alerts and maintenance reminders
  • Front view camera to view sawing location and obstructions
  • LED spot and bar lights for night sawing
  • Auto Water System (AWS) automatically starts/stops water to the blade when in and out of the cut
  • Undercarriage slurry flap to minimize slurry buildup on rear axle components
  • Effective weight balance for optimum performance
  • Fast attach blade guard stabilizer with quick disconnect ball joints to speed guard removal
  • East-turn 5th wheel that automatically lifts rear wheels at max raise the height to allow rear saw swivel
  • Enclosed rear wheel motors that are hydraulically driven with center swivel for easy tracking adjustment
  • SImple freewheeling with dash mounted switch activation
  • Robust blade shaft with massive support by 3 pillow black style spherical roller bearings
  • Powerful jackshaft drive with low speed, high torque blade drive maximizing full engine power
  • Advance air cleaner with redial seal primary and secondary filters along with spinner style pre-cleaner
  • Robust radiator core made of heavy-duty aluminum that withstands frequent power washing
  • Sealed electronic protection that resists heat, moisture, shock, and vibration
  • SIngle piece frame platform with heavy bar and tubular reinforcement

See PDF handout below for even more information and specifications.



Blade Capacity Engine/Motor Make Part Number Catalog Number
36” Kubota® 5801480 108496
42” Kubota® 5801481 107713
48” Kubota® 5801482 107773
54” Kubota® 5801483 106444
60” Kubota® 5801484 106516
