CB515 Hand Held Motor - Drill Motor - Coring Equipment - Products

CB515 Hand Held Motor

Easy to use and lightweight motor for wet core drilling with bits up to 5" diameter.

Electric - 1800 Watt, 115 Volt

Export List As PDF


More Views

  • CB515

Features & Benefits:

  • 1800 Watt, 115 volt electric motor

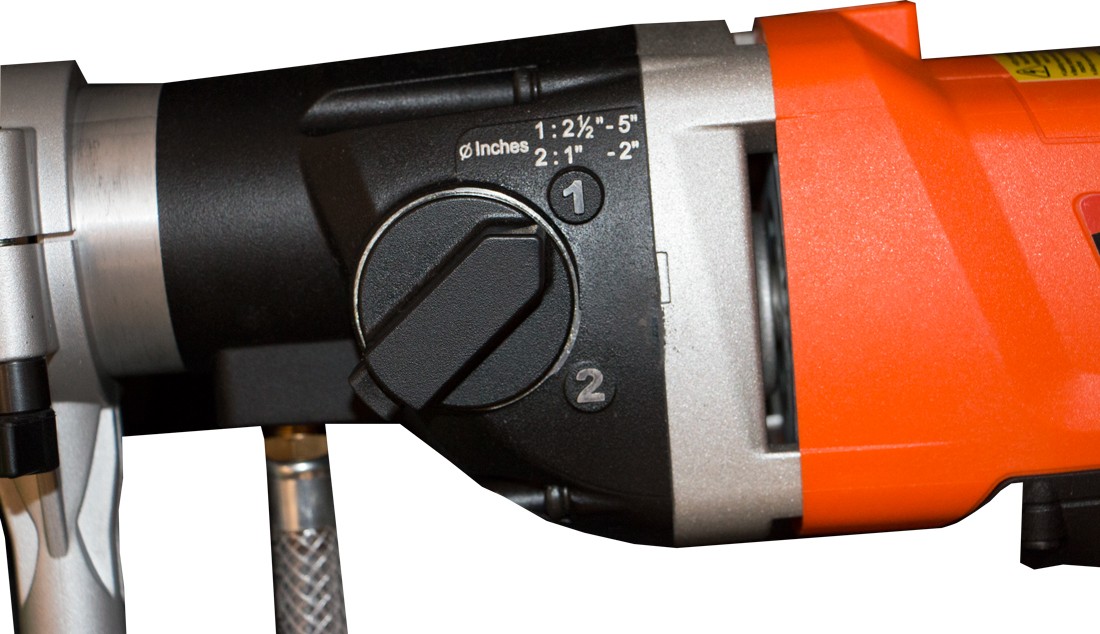

  • 2-speed gear box (1400 rpm and 2300 rpm) with slip clutch
  • Side handle for stable coring
  • 1.250-7 threaded spindle with 5/8”-11 adapter

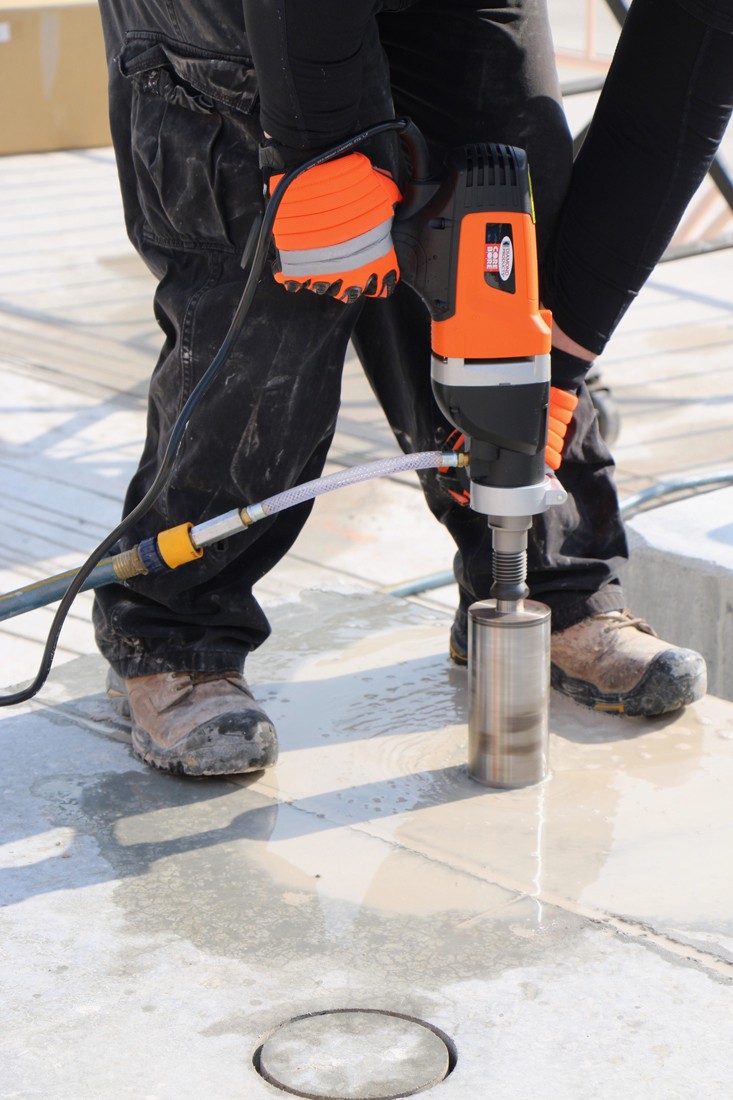

  • Water hose connection for wet drilling
  • PRCD/GFCI Class I cord
  • Works with M-4 stand and hand held motor mounts
  • Top bubble level for accuracy
  • Weight: 10.5 lbs.

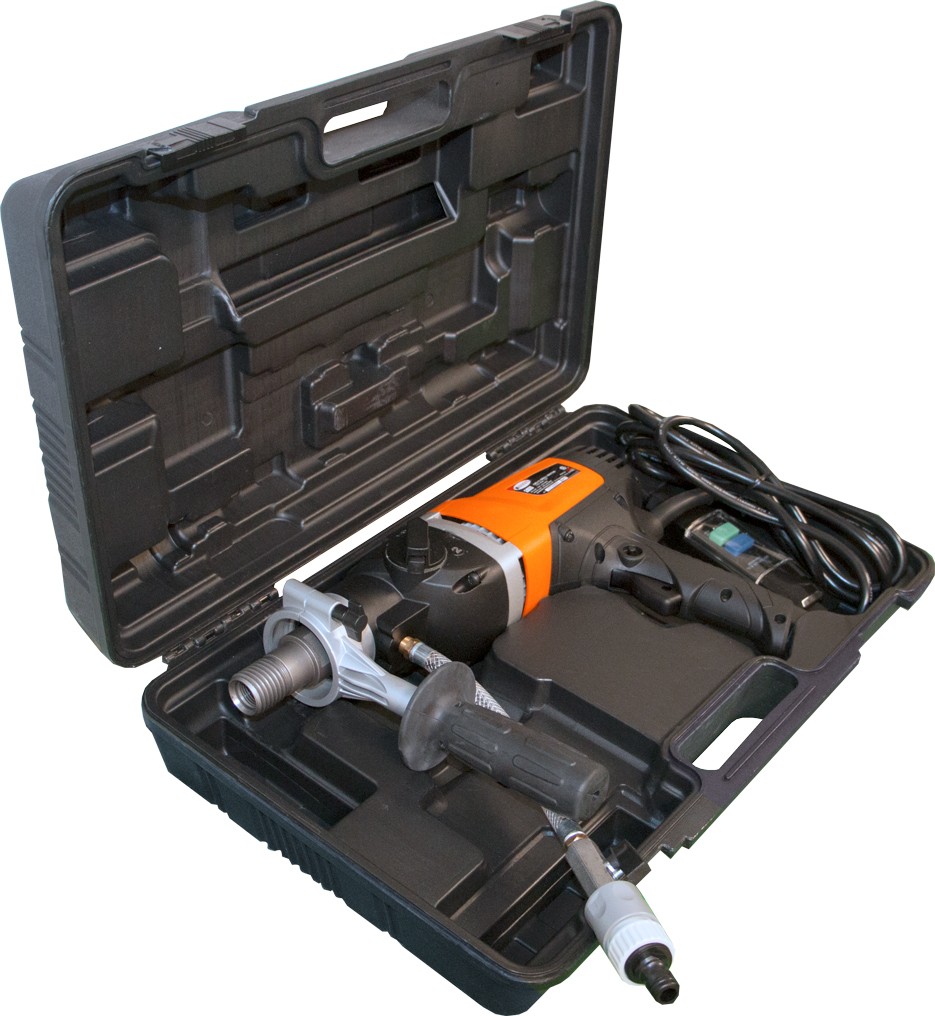

  • Includes: Plastic molded carrying case, side handle, 5/8”-11 adapter and wrench

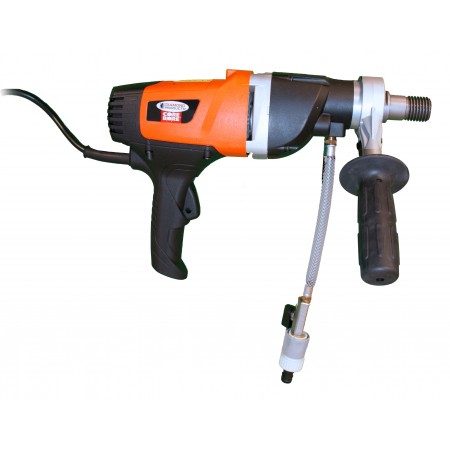

CB515 Hand Held Electric Drill Motor
Model # Part # Cat #
CB515 4244128 98794

Additional Information

Model Group CB
Model Number CB515
Catalog Number 98794
Rig Type N/A
Part Number 4244128
Engine/Motor Make Core Bore
Engine/Motor Model No
Motor/Engine Power No
Power Source Electric
Drill Motor Max Bit Capacity 6" (mounted) / 3" (hand-held)
Speed Two Speed
Motor RPM No
