CC3535JBVP Propane Saw - CC3500 - Walk Behind Saw - Sawing - Products

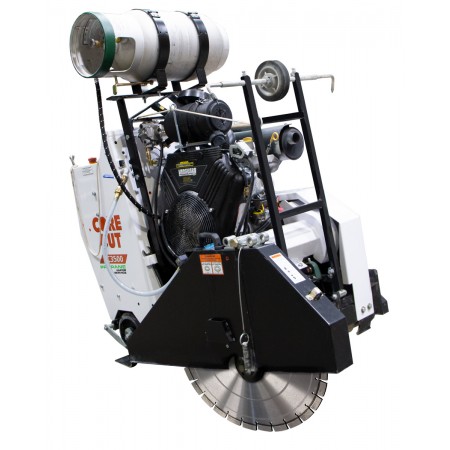

CC3535JBVP Propane Saw

Clean Running and Powerful


14" to 30" Blade Capacity





Export List As PDF

CC3535JBVP Propane Saw

More Views

  • CC3535JBVP Control Panel
  • CC3535JBVP Propane Saw

Features & Benefits:

  • Briggs Vanguard engine converted to propane vapor draw
  • Great mid-size saw for service, utility work, and rental
  • Jackshaft allows full engine power
  • Easy to maneuver self-propelled drive
  • Engine adjustment mechanism for belt tightening and maintenance
  • Strongest frame on the market
  • 30% more torque with jackshaft design
  • Fits through a 30" door frame
  • Includes: hour meter, frame lift, cutting depth indicator, quick disconnect blade flanges and telescoping front pointer
SPECIFICATIONS
Max Depth of Cut with 14" Blade 4-3/8"
Max Depth of Cut with 20" Blade 7-3/8"
Max Depth of Cut with 26" Blade 10-3/8"
Max Depth of Cut with 30" Blade 12-3/8"
Blade Shaft Diameter 1-3/4"
Arbor Size 1" with single drive pin
Blade Shaft Drive 6 belts
Blade Mounting Right or left
Blade Raise/Lower Electro-hydraulic pump
Transmission Eaton Model 10
Drive Speed 0-200 feet per minute
Air Filter 4-stage
Fuel Tank SIze 33.5 pounds
CC3535JBVP PROPANE SAW
Model # Engine Make/Model Engine Power Blade Capacity Part # Cat # Weight (lbs.)
CC3535JBVP-14 Converted Briggs Vanguard 35 HP 14" 5801412 101231 980
CC3535JBVP-20 Converted Briggs Vanguard 35 HP 20" 5801413 101232 1030
CC3535JBVP-26 Converted Briggs Vanguard 35 HP 26" 5801414 101233 1060
CC3535JBVP-30 Converted Briggs Vanguard 35 HP 30" 5801415 101234 1095
